Mechanical equipment used to transfer liquids by converting mechanical energy into hydraulic energy. We supply a complete pump range across five core types, each engineered to a specific duty, pressure, and industry standard.
Main Pump Type
Key Parameter
Typical Range
Common Standard
Commercial Application
Centrifugal Pump
Flow Rate
1 – 500 m³/h
ISO 2858 / ISO 5199
Water treatment plants
Positive Displacement Pump
Head Pressure
10 – 150 m
API 610 / API 676
Agriculture irrigation
Diaphragm Pump
Motor Power
0.37 – 45 kW
DIN 24256 / ISO 9001
Chemical plants
Gear Pump
Speed
1450 – 2900 RPM
ISO 9001
Oil & gas industry
Submersible Pump
Operating Temperature
−10°C to 85°C
ISO 9001 / IEC 60529
HVAC systems
🌀

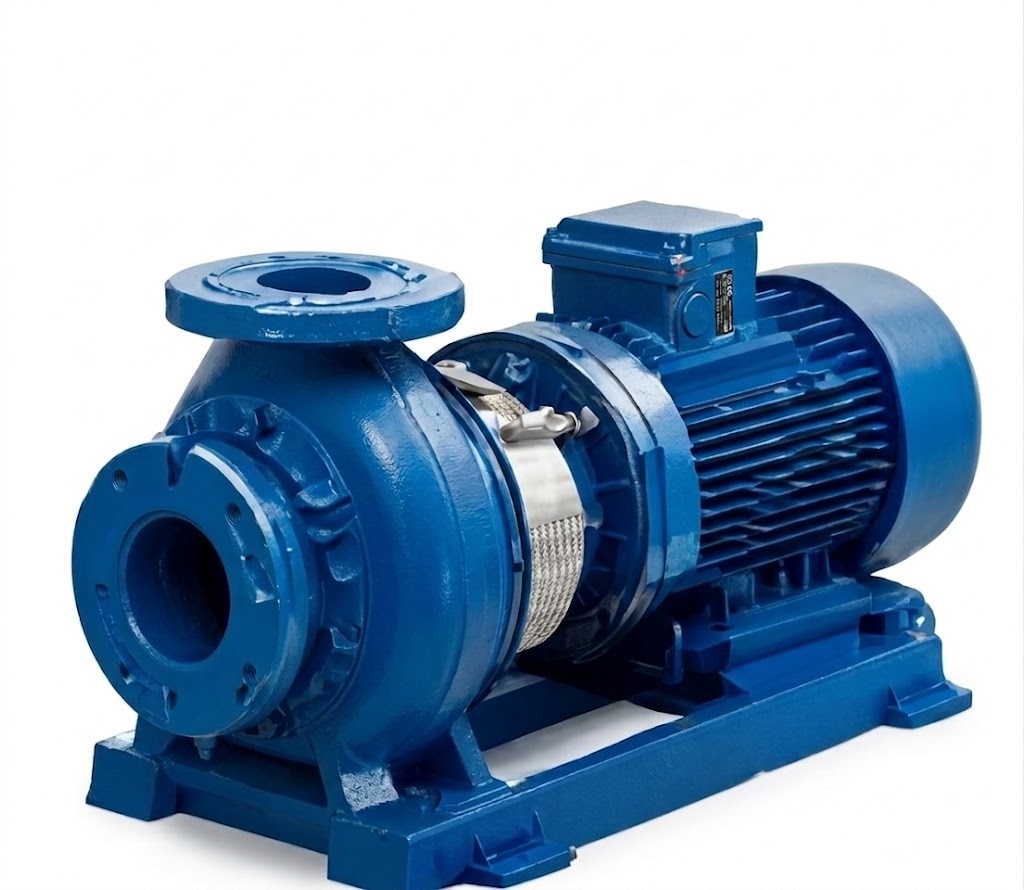

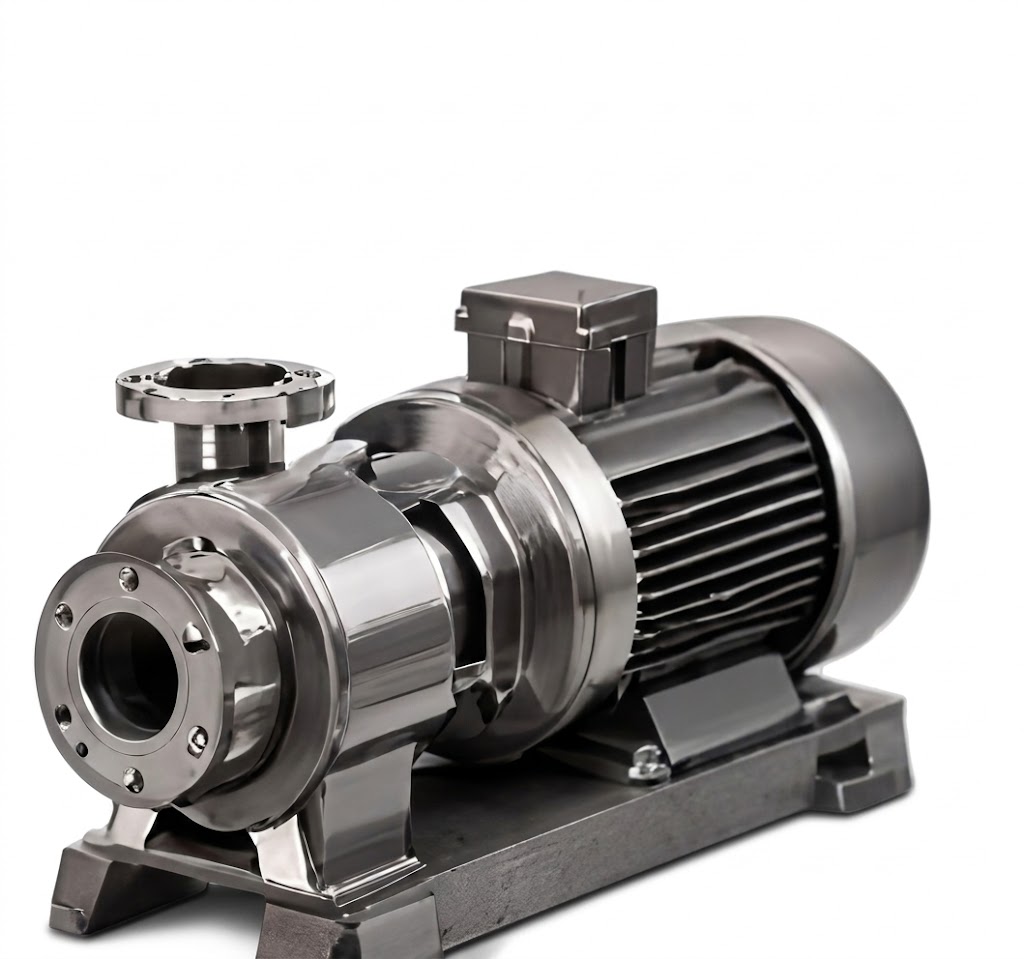

Centrifugal Pump
Most widely used pump type for general liquid transfer.
Category 01
Product Overview — Centrifugal Pump
Centrifugal pumps use a rotating impeller to accelerate liquid outward and convert kinetic energy into pressure, making them the most common pump choice for high-flow, low-to-medium head applications across water and process industries.
Flow rate range of 1–500 m³/h covering small transfer units to large treatment plant duty
Manufactured to ISO 2858 / ISO 5199 dimensional standards
Hydrostatic, vibration, and performance testing on every unit
Cast iron, stainless steel, or bronze wetted parts available
Hydrostatic test, vibration test, performance test
Material
Cast Iron / Stainless Steel / Bronze
Application
Water treatment plants
🔧
Positive Displacement Pump
Constant-flow pumping independent of system pressure.
Category 02
Product Overview — Positive Displacement Pump
Positive displacement pumps move a fixed volume of liquid with each cycle, delivering steady flow regardless of discharge pressure well suited to higher-head duty such as irrigation networks and oil & gas transfer lines.
Head pressure capability of 10–150 m
Built to API 610 / API 676 oil & gas industry standards
Every unit passes pressure test and flow test before dispatch
Cast iron, stainless steel, or bronze construction options

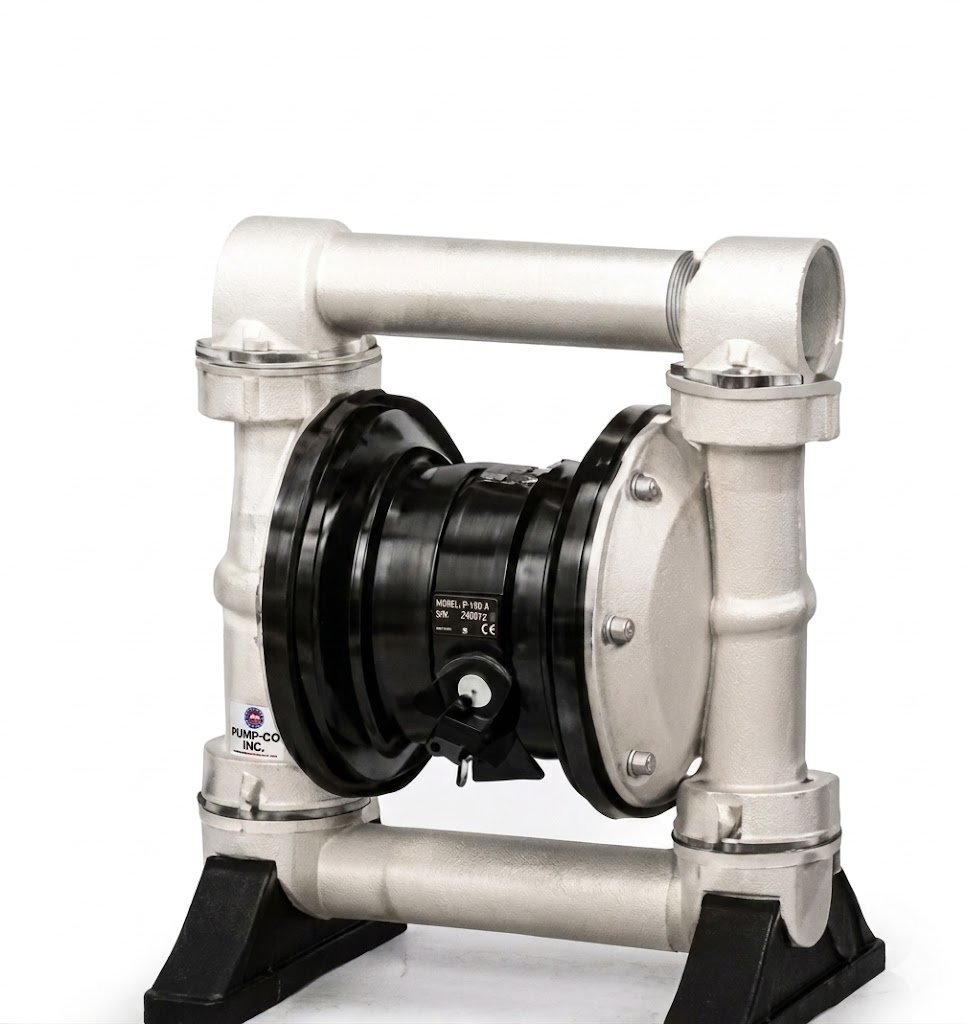

Air-operated double-diaphragm pump for sensitive and corrosive fluids.
Category 03
Product Overview — Diaphragm Pump
Diaphragm pumps use a flexing membrane to move liquid without the fluid contacting rotating seals, making them ideal for corrosive, abrasive, or chemically aggressive media in process and chemical plant environments.
Motor power range of 0.37–45 kW
Manufactured to DIN 24256 / ISO 9001
Leak test and performance test on every unit
Seal-less design suited to corrosive chemical transfer
Precision rotary gear pump for viscous fluid and oil transfer.
Category 04
Product Overview — Gear Pump
Gear pumps use two meshing gears to draw in and displace liquid at a constant rate, providing smooth, pulsation-free flow that is well suited to lubricants, fuels, and other viscous fluids in oil & gas service.
Speed range of 1450–2900 RPM
Manufactured to ISO 9001 quality standard
Flow, pressure, and torque tested before dispatch
Cast iron, stainless steel, or bronze gear-set options

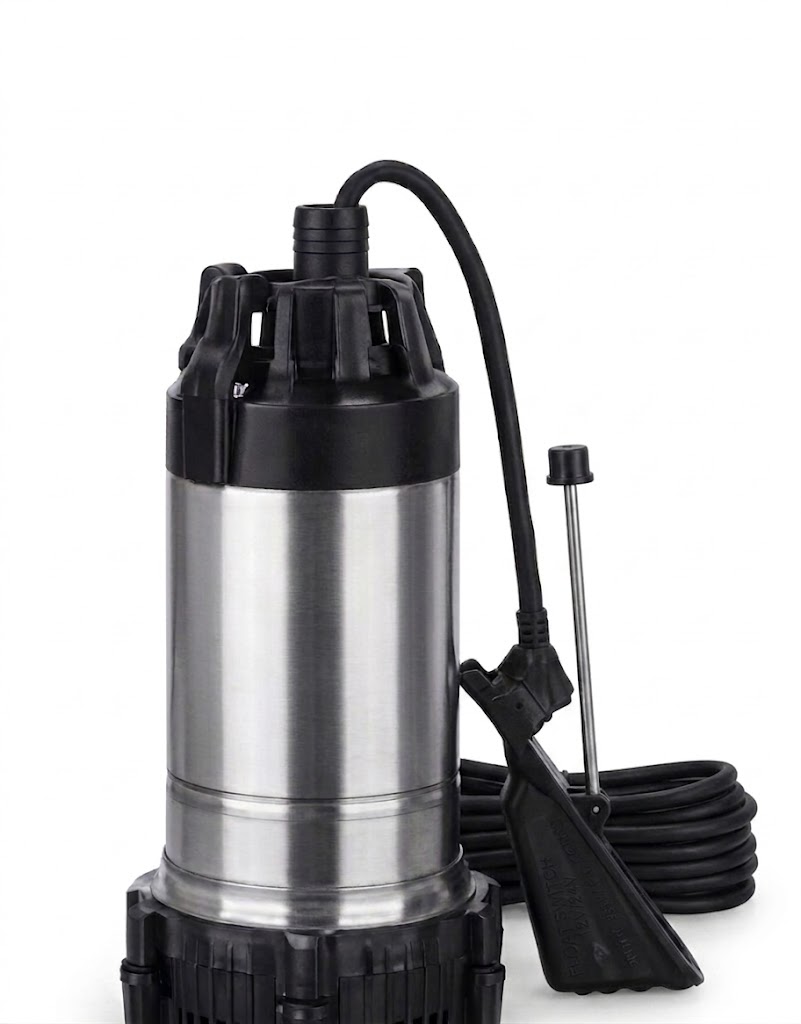

Fully submerged electric pump for drainage and lift applications.
Category 05
Product Overview — Submersible Pump
Submersible pumps operate fully submerged in the pumped liquid, with a sealed motor and electrical housing rated for continuous wet-environment duty commonly used in HVAC condensate handling, drainage, and lift station service.
Speed range of Operating temperature range of −10°C to 85°C1450–2900 RPM
Manufactured to ISO 9001 / IEC 60529 ingress protection standard
Electrical test and performance test on every unit
Electrical test and performance test on every unit
