Fiber Optic Cable Materials Overview

Raw materials and components used to manufacture fiber optic cable, which transmits data as light signals through optical fibers. We supply the full set of jacketing, strength, water-blocking, and identification materials required for cable production

🔌

Fiber Optic Cable Raw Materials

Jacketing, strength member, water-blocking, and identification materials for fiber optic cable manufacturing.

Category 01

Product Overview — Fiber Optic Cable Raw Materials

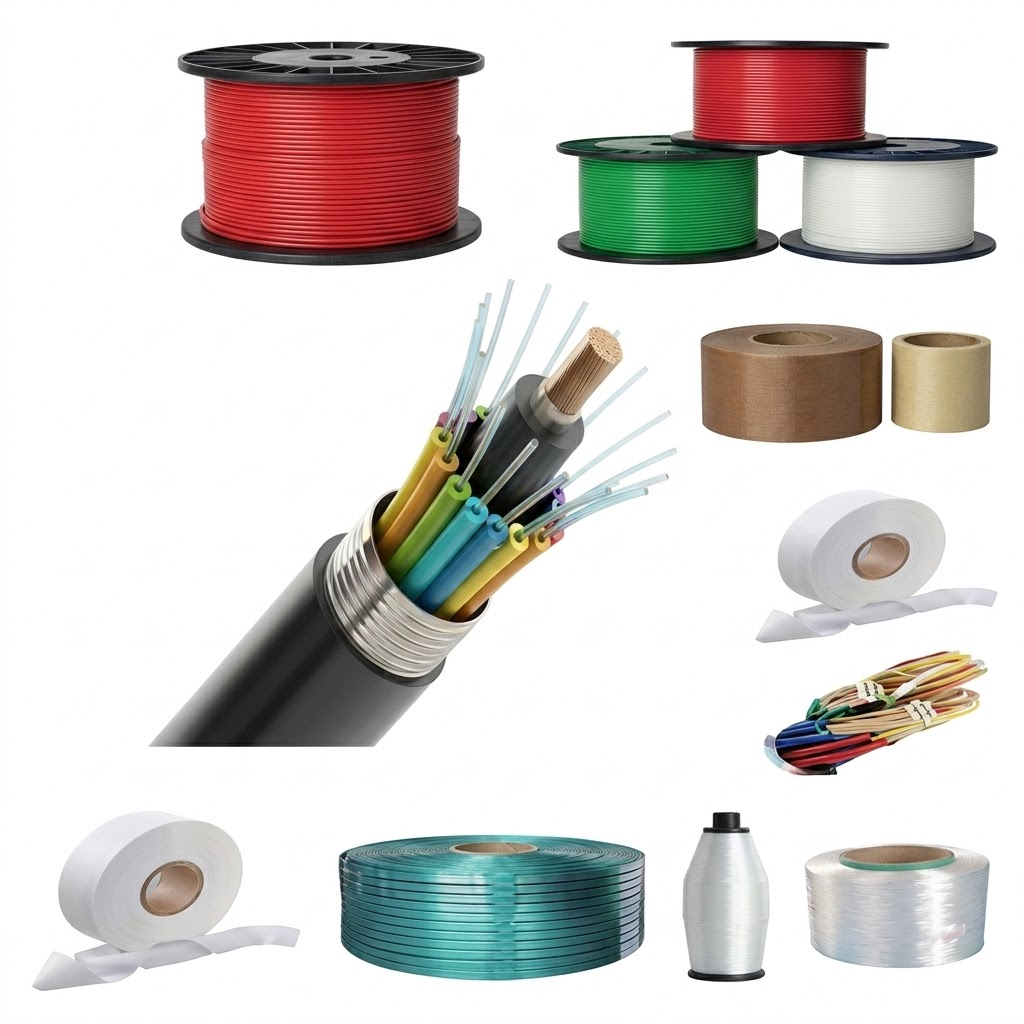

Fiber optic cable is built up from a defined set of polymer, yarn, tape, and metallic components, each performing a specific role: PBT and HDPE/MDPE form the loose-tube and sheath structure, thixotropic jelly and water swellable yarn/tape provide water blocking, aramid and binder yarn give tensile strength, and steel tape or steel wire rope provide armoring and crush resistance. Identification and printing tape complete the cable for installation and maintenance.

Loose-tube and sheath materials: PBT (B-6550 LN), HDPE (6062), MDPE (6052)
Water-blocking materials: Thixotropic Jelly (OPW-280A), Water Swellable Yarn (WS-1), Water Swellable Tape (25 mm), Flooding Compound (DWS-350)
Strength & armoring materials: Aramid Yarn (1580 Dtex), Binder Yarn (1333), Steel Tape (37 mm), Steel Wire Rope/Single (0.9 mm x7)
Identification: Master Batch (Clariant), Identification Tape (Trans.), Printing Tape (White)

Commodities & Model Specifications

Raw Material

Description

Model / Specification

Available Range / Technical Details

Aramid Yarn

Strength member

Kevlar type

800D,1000D,1500D,3000D,6000D

Binder Yarn

0.7kg Per Km

1333

0.7 Copper Foil Mylar Tape

Shielding material

Al/PET/Cu

Various constructions

CSM

1.05 x lenghth

2.3mm

1.05 Fiber Core

1 KM = 1.05 X NOS OF FIBER

G.652D

12.6 Fiber Core

1 KM = 1.05 X NOS OF FIBER (USED HYBRID/G

G.655C LEAF

-

Fiber Core

1 KM = 1.05 X NOS OF FIBER (USED HYBRID/G)

G.657A1, G.657A2

-

Flooding Compound

10 - 14 Kg as per core

DWS-350

14 FRP Rod

Central strength member

GFRP/FRP

0.4mm to 6.5mm diameters

Galvanized Steel Strand

Strength member

Galvanized

1x7, 1x19 constructions

GFRP Rod

Glass reinforced plastic rod

Cable Grade

Various diameters

Glass Fiber Yarn

Reinforcement yarn

E-Glass

Standard and reinforced grades

HDPE

As per cable dia meter

6062

150 Identification Tape

1.05 x lenghth

Trans.

1.05 LSZH Compound

Low smoke sheath

LSZH

Indoor/outdoor grades

Master Batch

0.15 kg Per Km x Nos of Tubes

Clariant

0.9 MDPE

As per cable inner dia meter

6052

60 Optical Cable Jelly Filling Gel

Cable core filling

Water blocking

Multiple viscosity grades

Optical Fiber

Telecom optical fiber

G.652D/G.657A1/G.657A2

Single Mode G.652D, G.657A1, G.657A2

Optical Fiber Filling Gel

Fiber protection gel

Thixotropic

Standard, low-temp, high-temp grades

PBT

AS PER TUBE SIZE

B-6550 LN

Natural, Colored, High-speed extrusion grades

PE Compound

Cable sheath material

HDPE/MDPE

Telecom grades

Plastic Coated Aluminum Tape

Armoring/shielding

Copolymer coated

Various thicknesses and widths

Plastic Coated Steel Tape

Armoring

ECCS/Copolymer

Various thicknesses and widths

Polyester Binder Yarn

Cable binding yarn

High Tenacity Polyester

Various deniers

Polyester Tape (Mylar)

Binding/wrapping tape

PET

Various thicknesses

PP Filler Rope

Cable filler

Polypropylene

Various diameters

Printing Tape

Cable identification

Printable - white

Customized printing

Ripcord

Cable opening cord

Polyester

Standard and high strength

Steel Tape

As per Core Size 43 Kg per Km

37mm

53 Steel Wire Rope/Single

36Kg per Km

0.9mm x7

-

Thixotropic Jelly

1.8KG Per KM x nos of tubes

OPW-280A

10.8 Water Blocking Glass Fiber Yarn

Reinforcement & water blocking

WB Glass Yarn

Standard and high strength grades

Water Blocking Tape

Water blocking tape

Swelling type

Single side, double side

Water Blocking Yarn

Water blocking material

SAP coated

Various deniers

Water Swellable Tape

AS PER Core size

25mm

3 Water Swellable Yarn

1Kg per KM

WS-1

1 XLPE Compound

Insulation material

XLPE

Cable grades

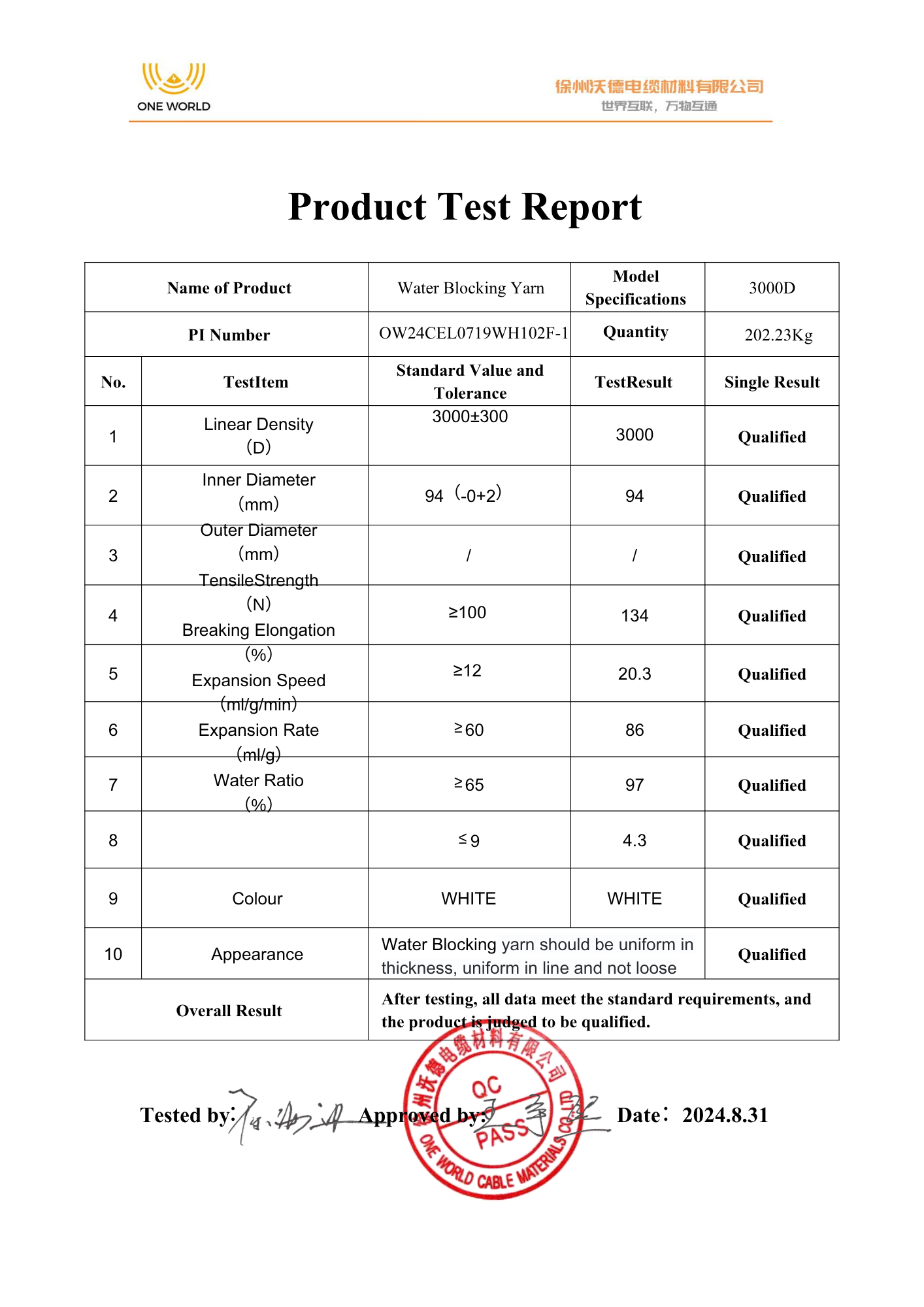

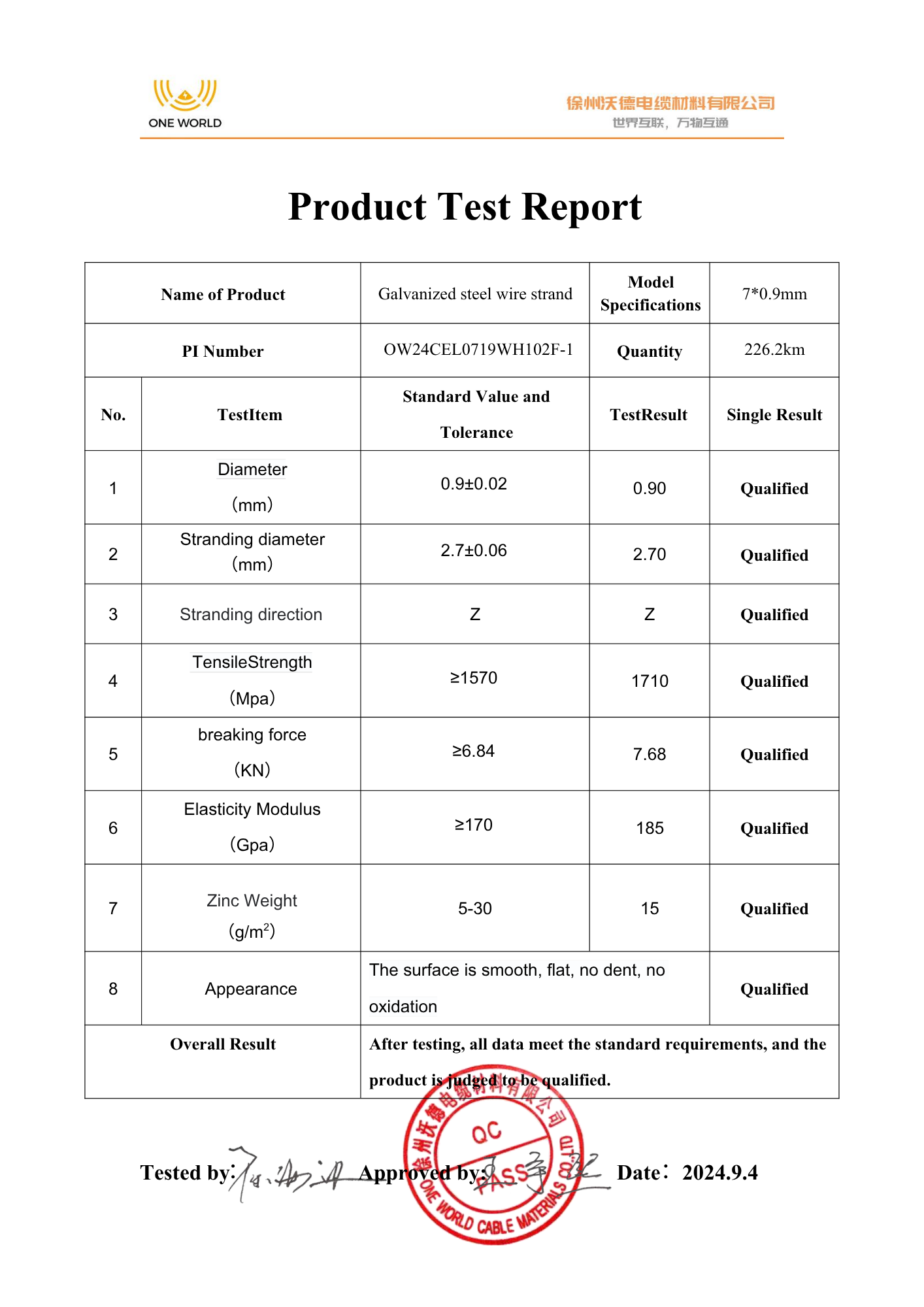

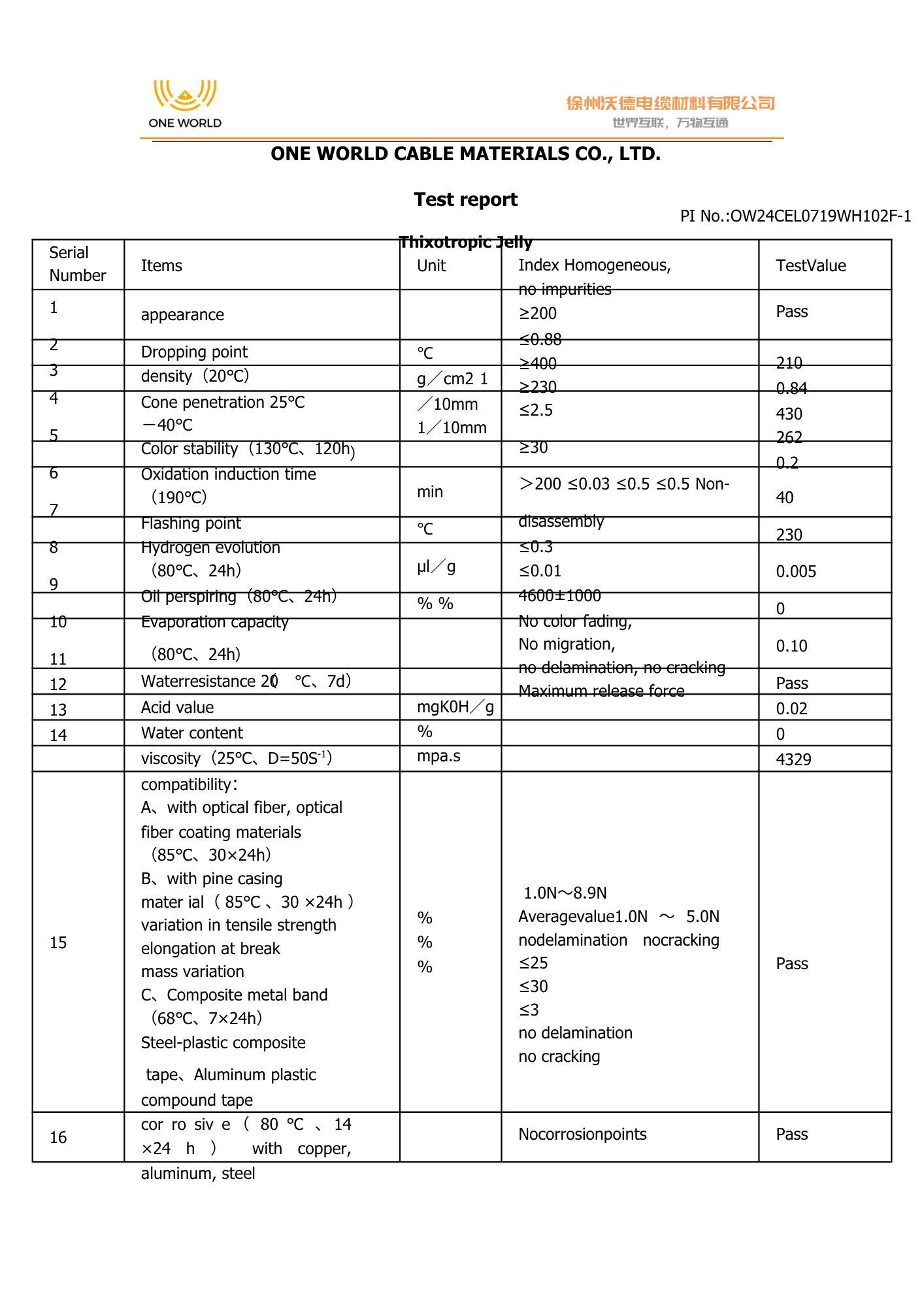

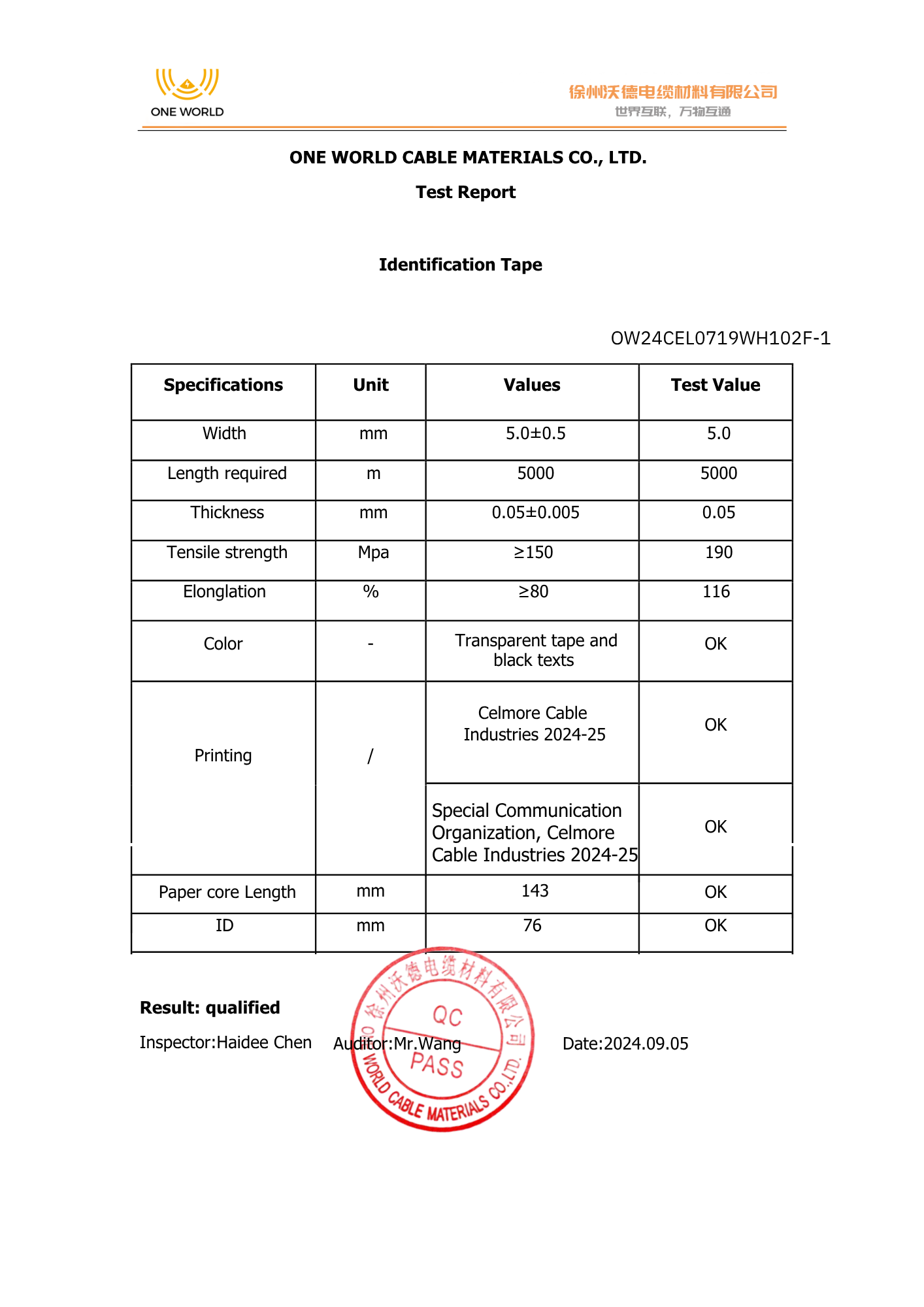

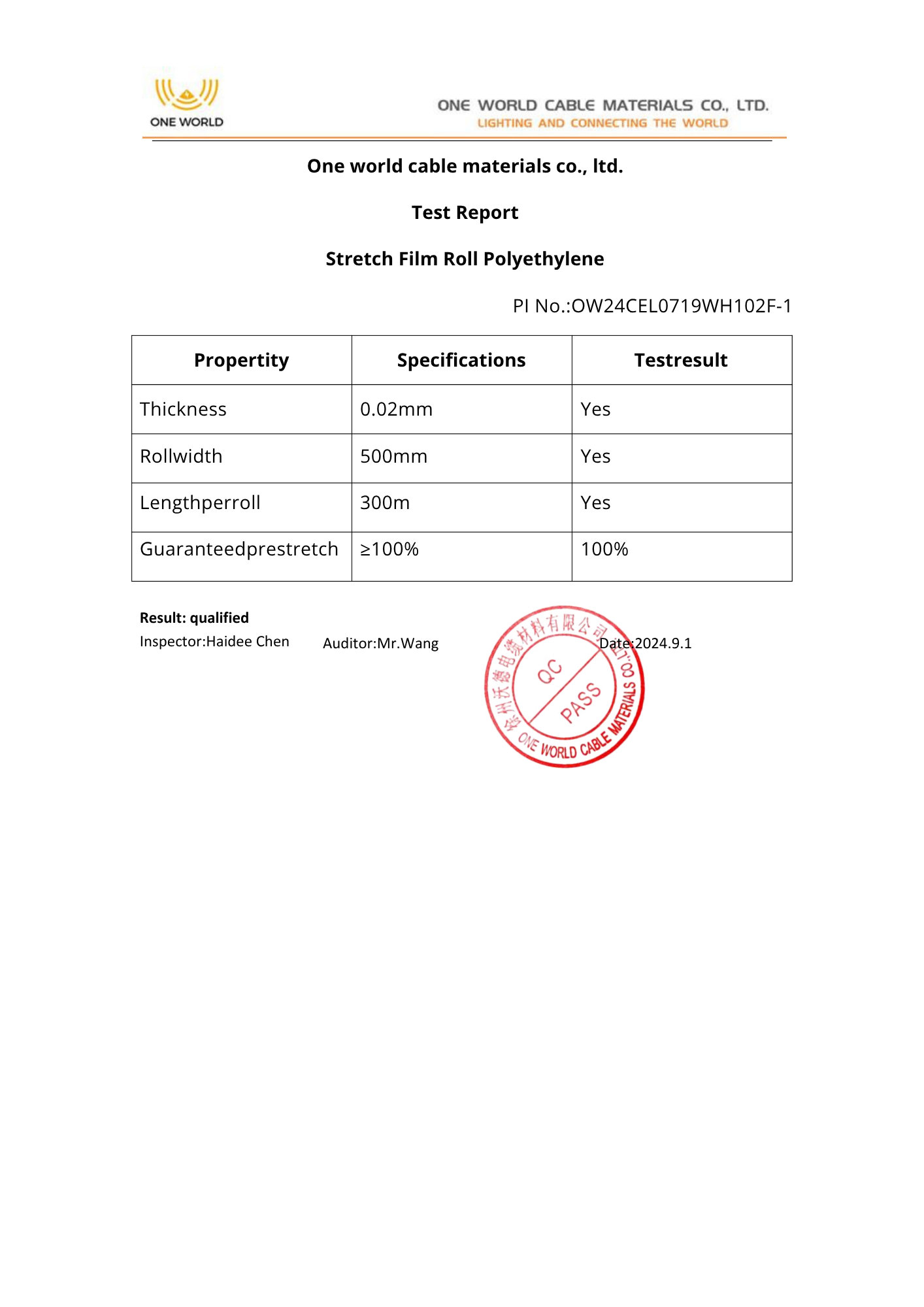

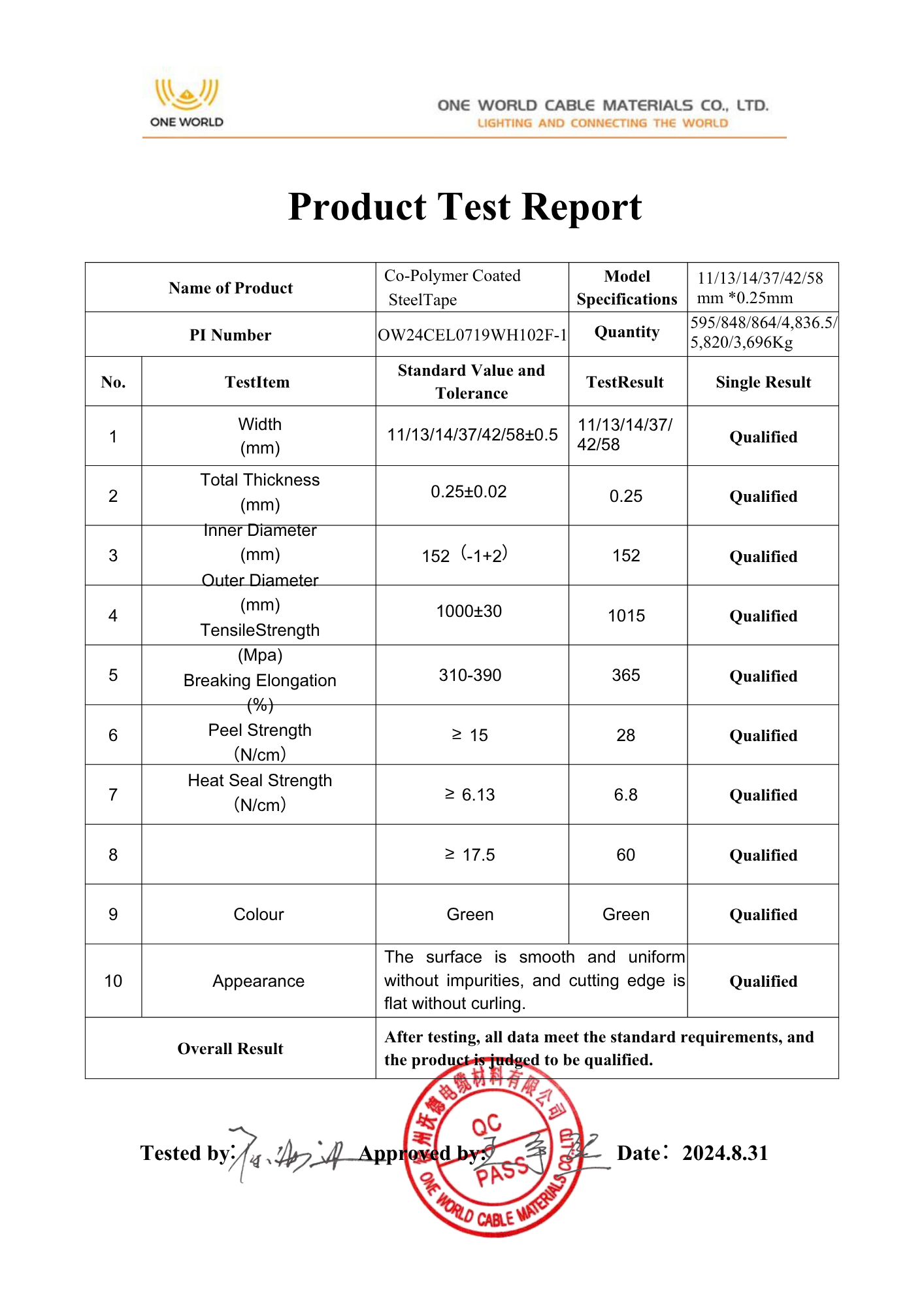

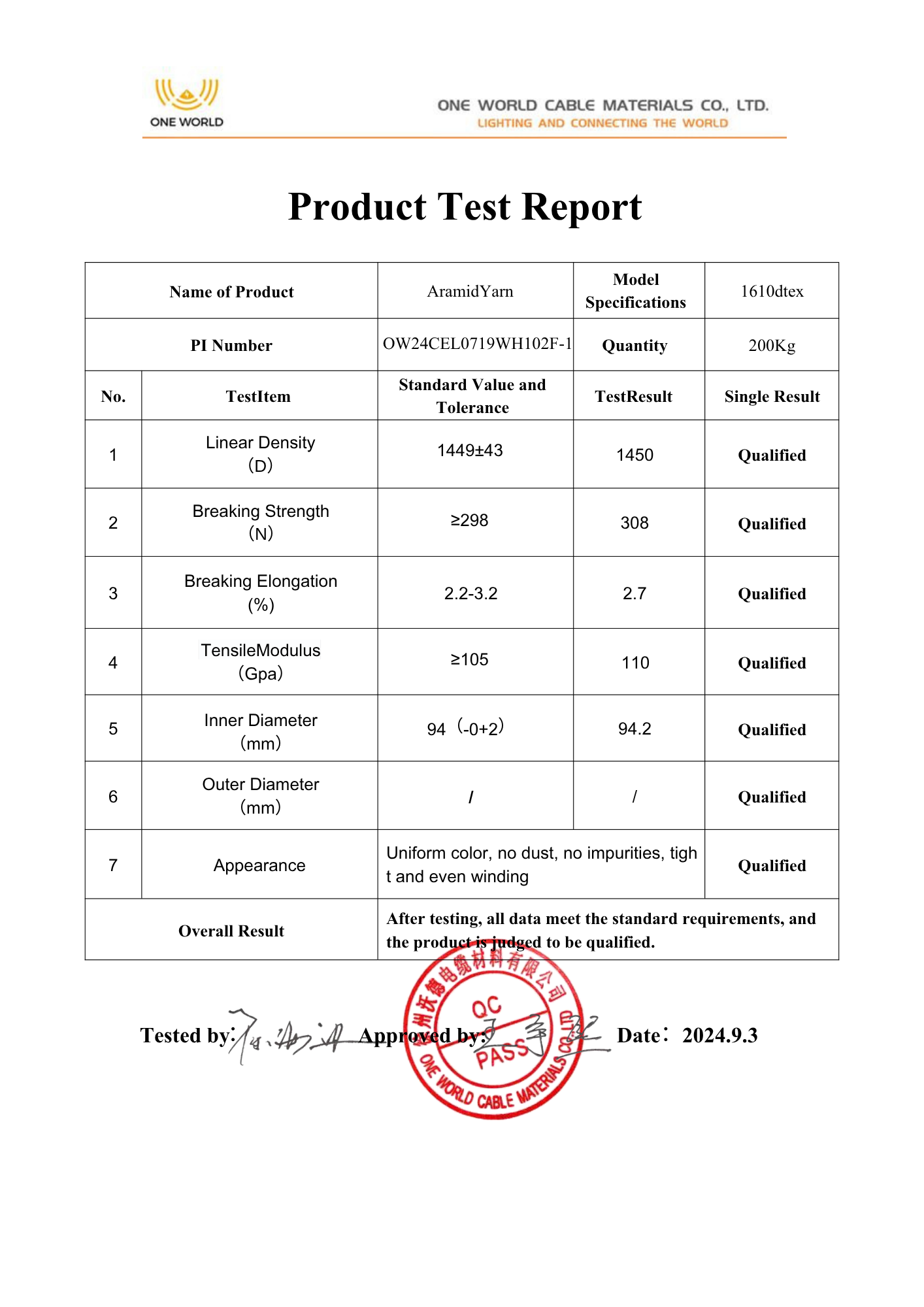

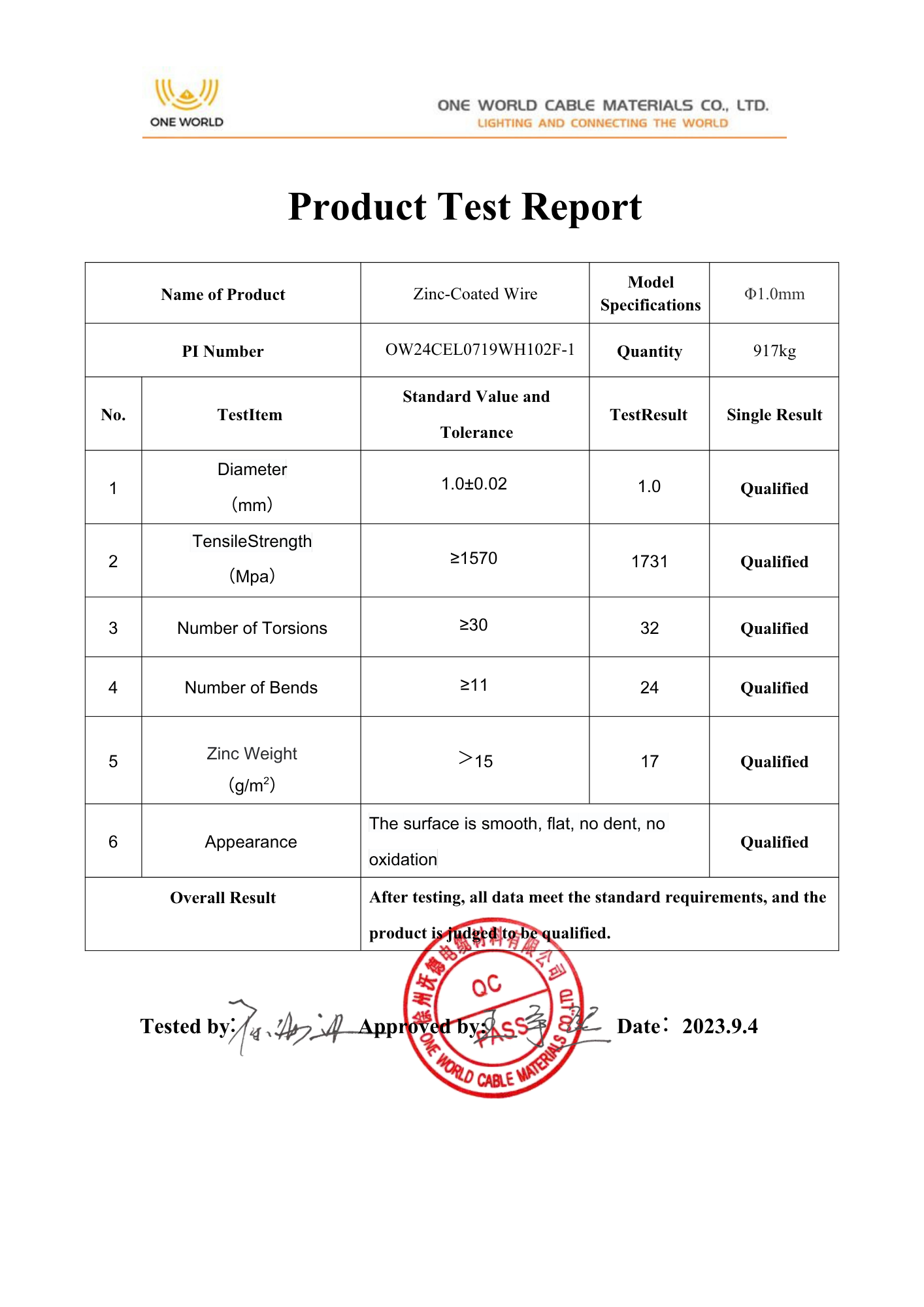

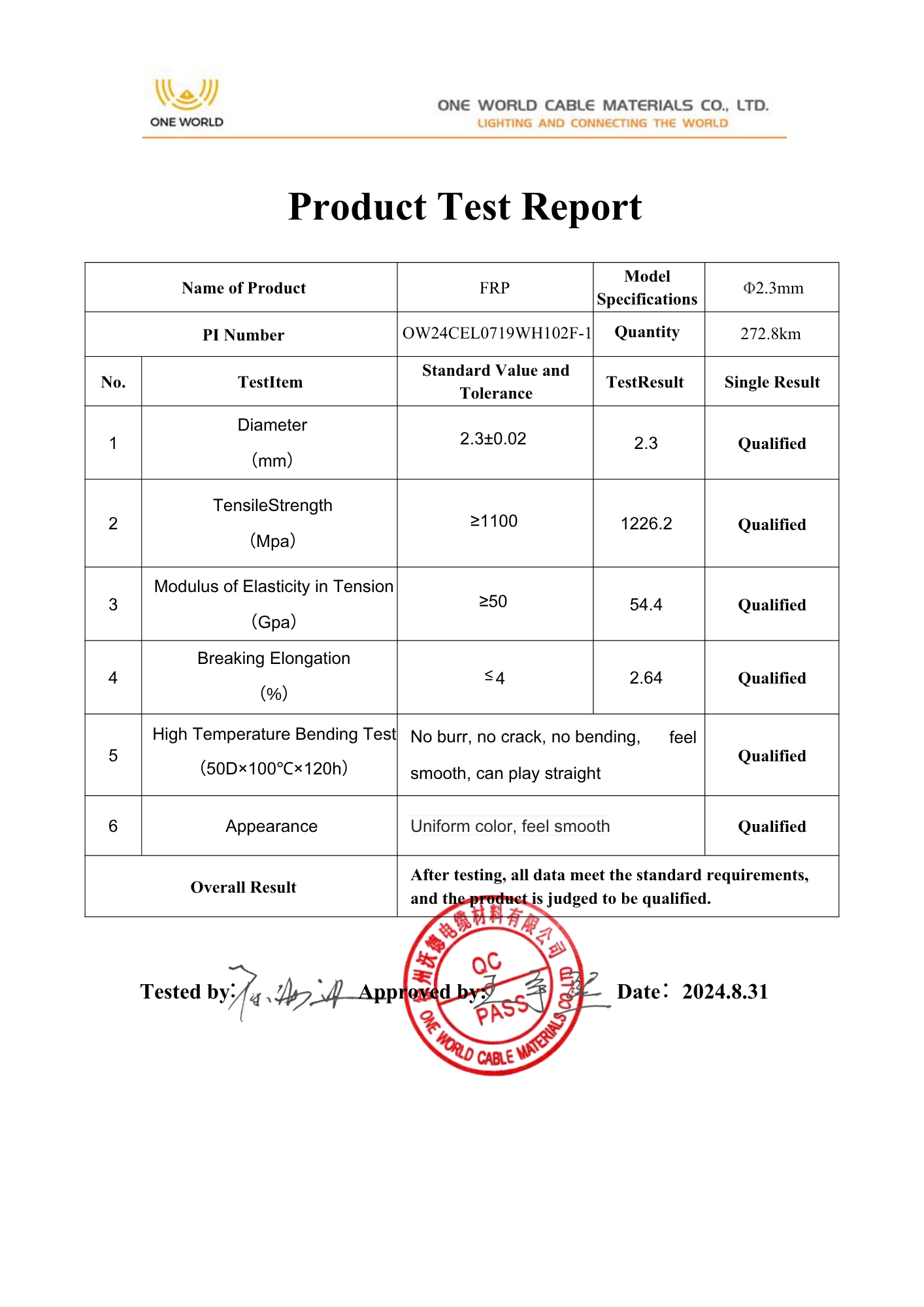

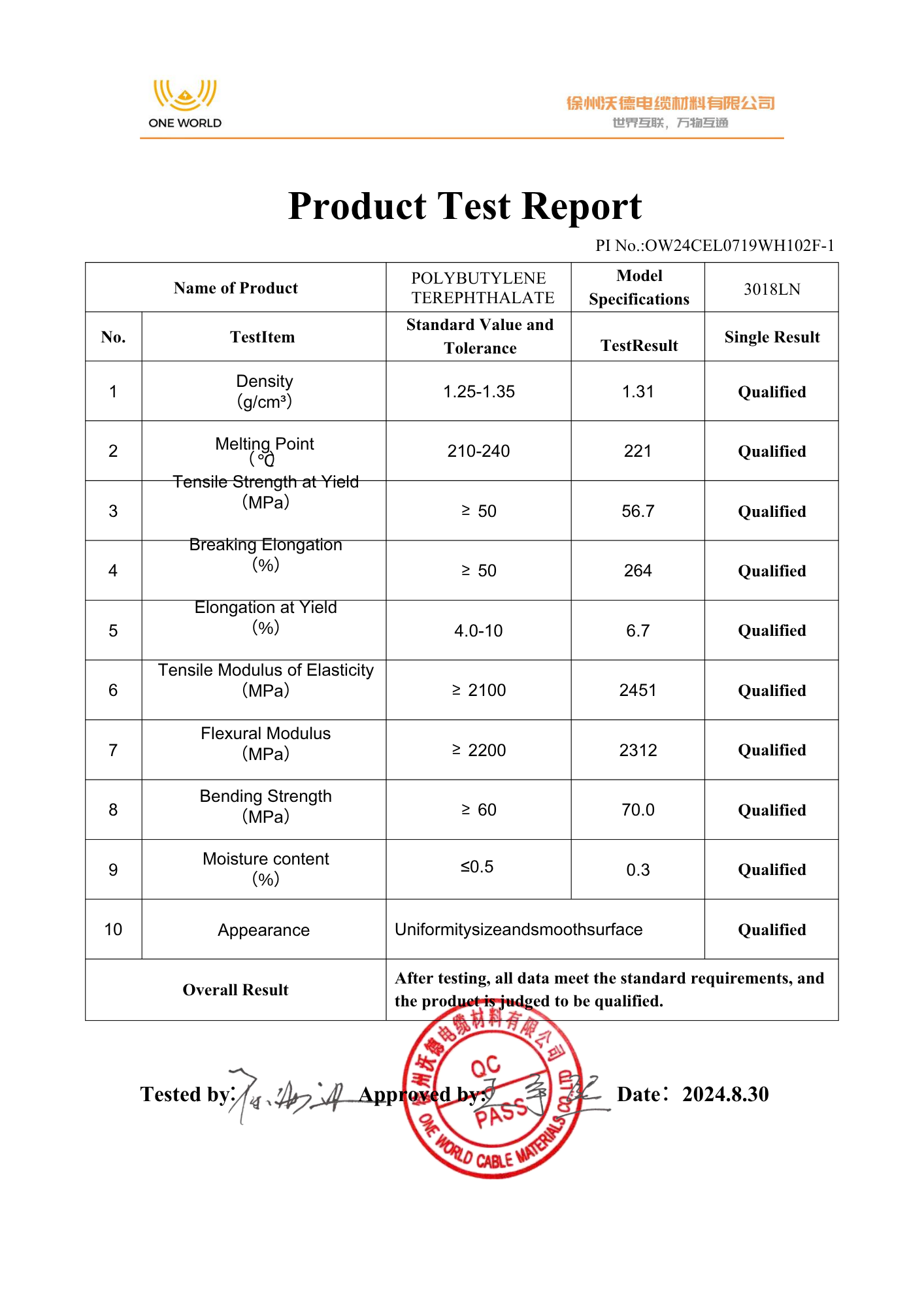

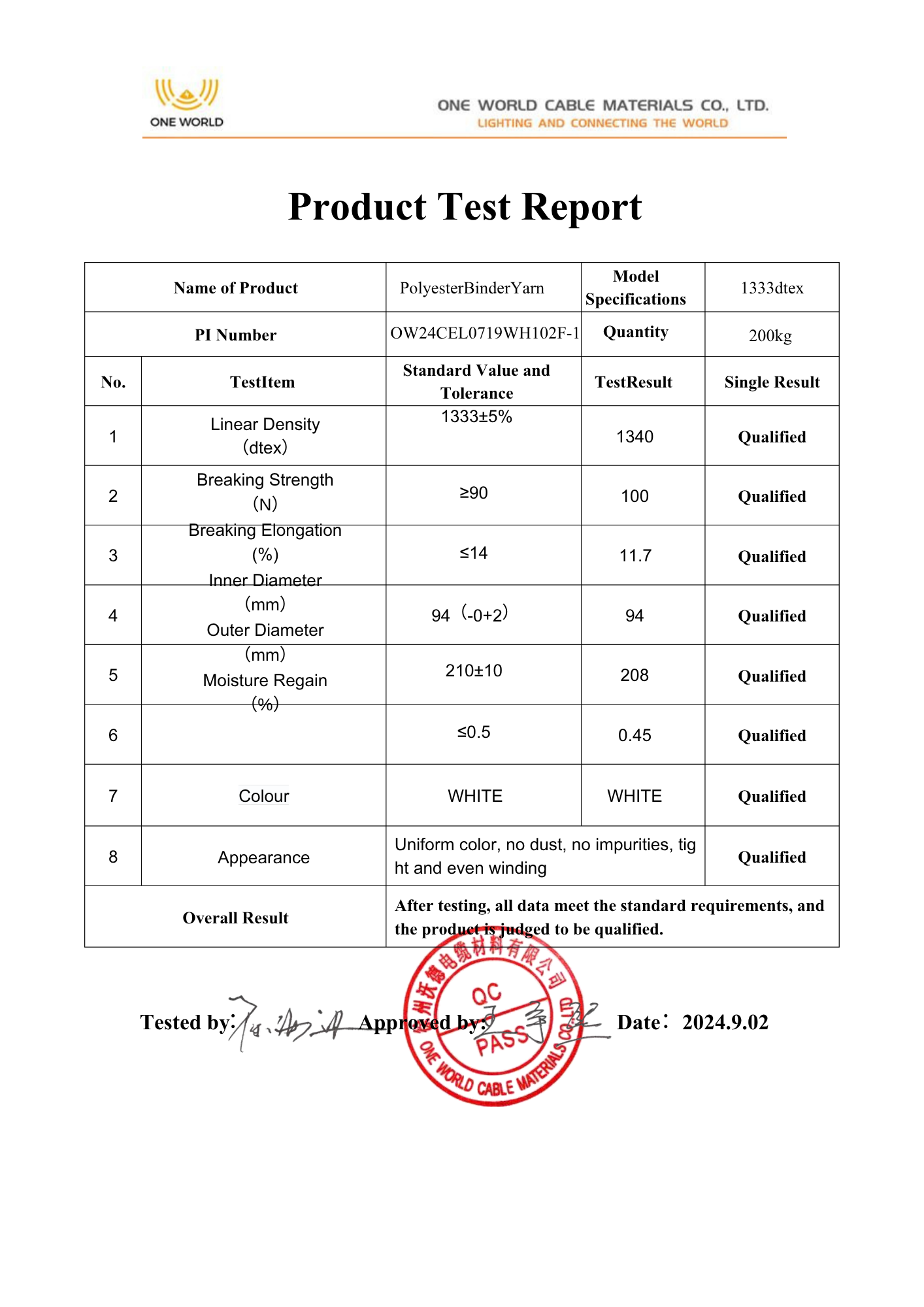

OW- Fiber Optic Products Test Reports
