Air Screw Compressors

KINGAIR Compressor Series

Description

Series

Type

Single-stage Permanent Magnet Variable Frequency Screw Air Compressor

KAPM Series

Oil Injected Air Compressor

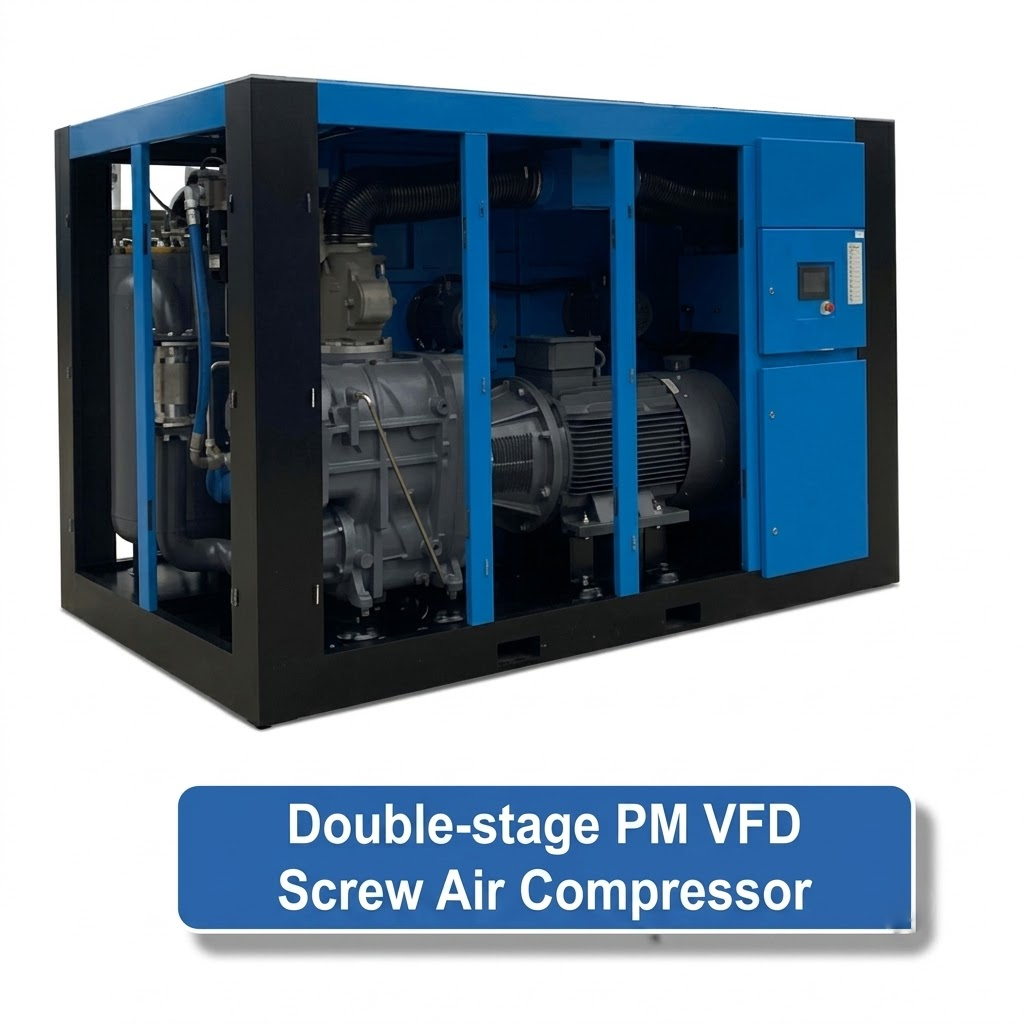

Double-stage Permanent Magnet Variable Frequency Screw Air Compressor

KAT Series

Oil Injected Air Compressor

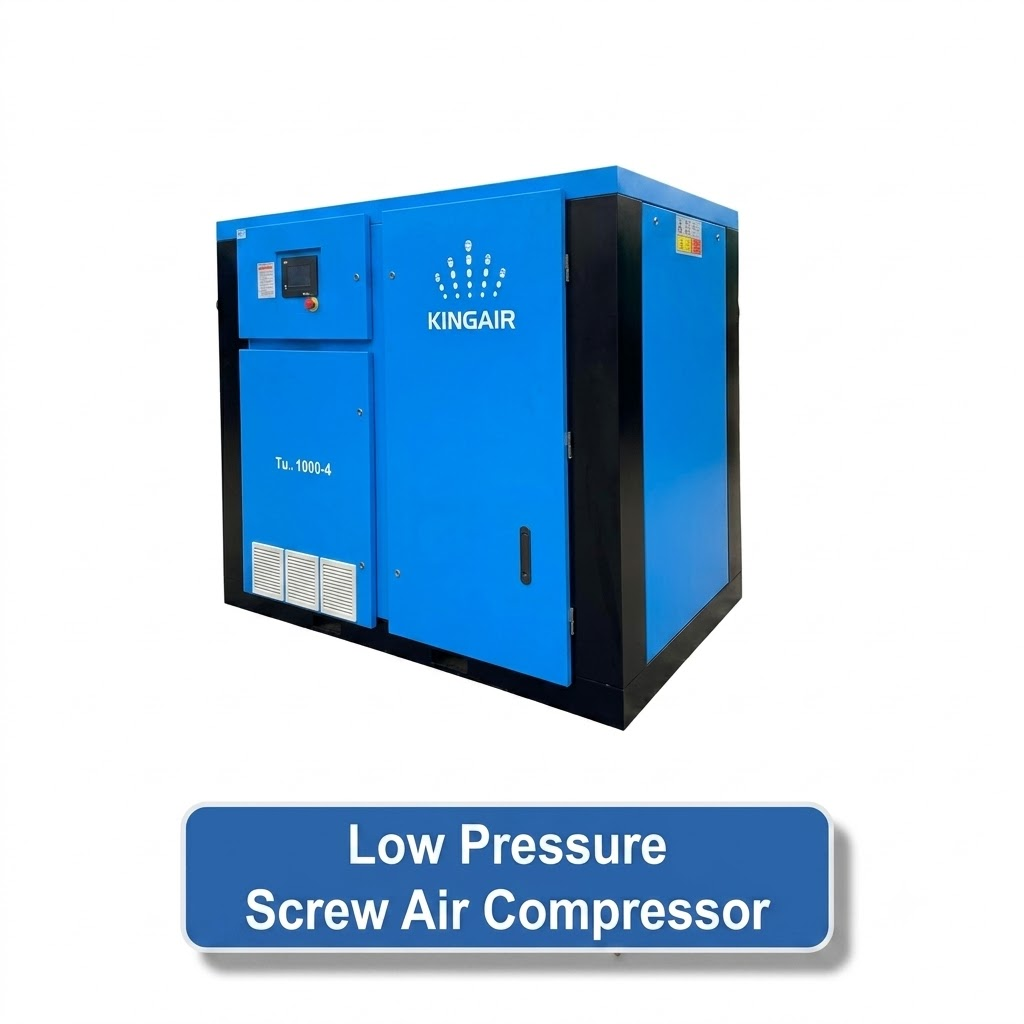

Low Pressure Single-stage PM VFD Screw Air Compressor

KAL Series

Oil Injected Air Compressor

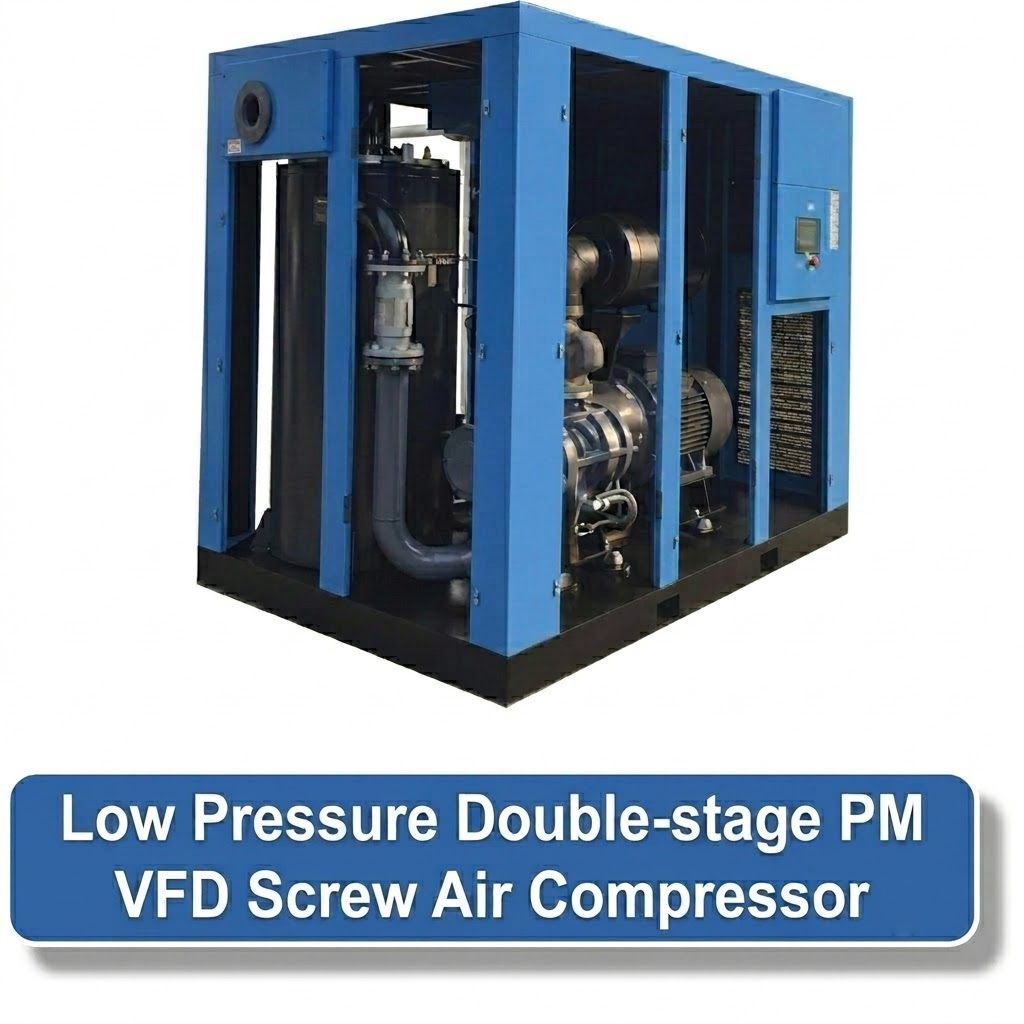

Low Pressure Double-stage PM VFD Screw Air Compressor

KATL Series

Oil Injected Air Compressor

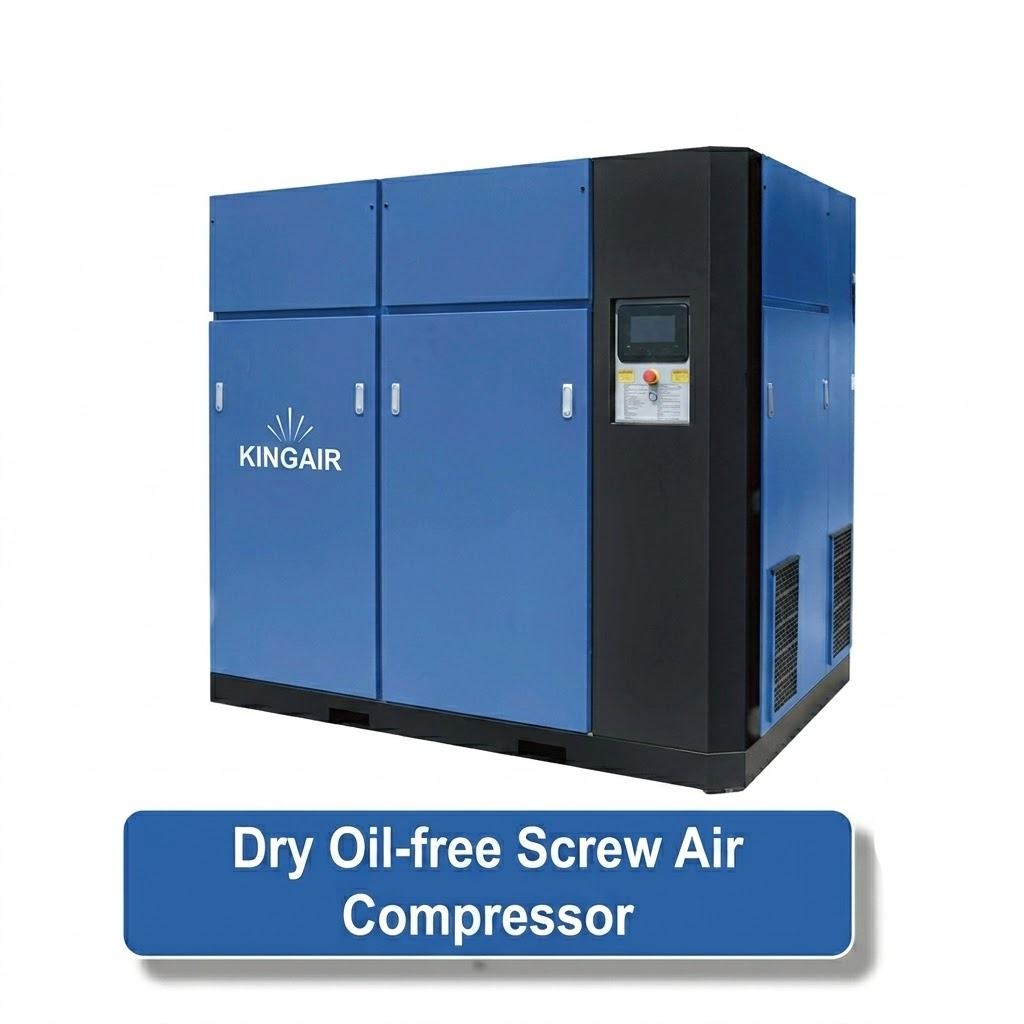

Dry Oil-Free Screw Air Compressor

KAW-G / KAWV-G Series

Oil-Free Compressor

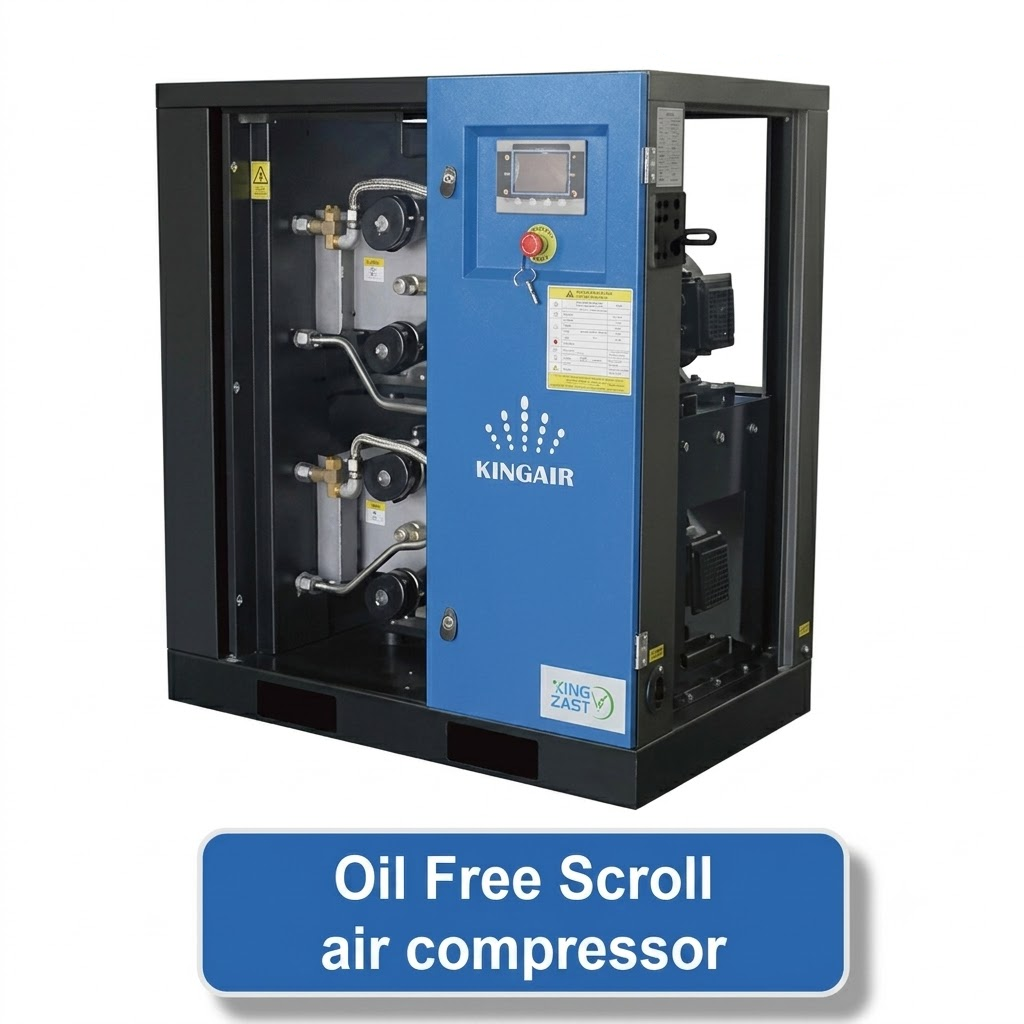

Low-Pressure Dry Oil-Free Scroll Air Compressor

KAWLV-G Series

Oil-Free Compressor

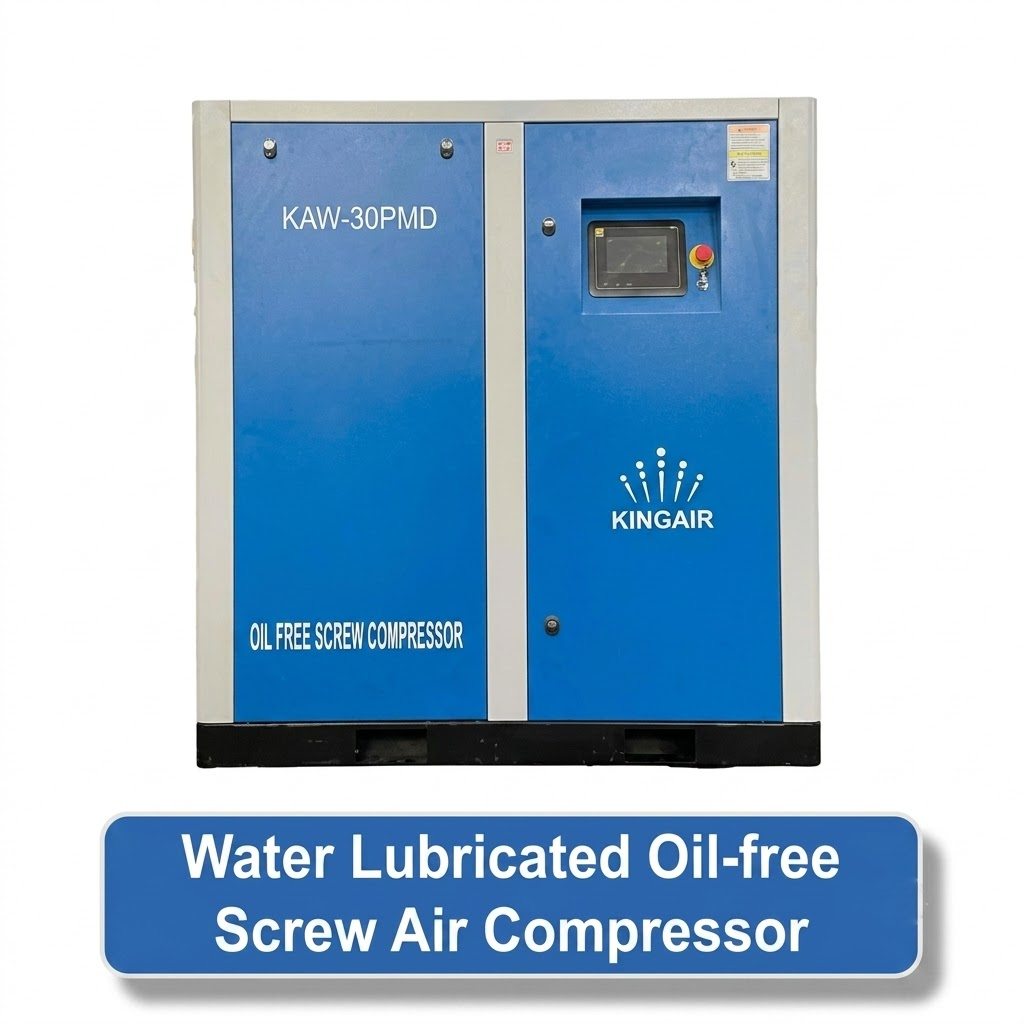

Water Lubricated Oil-Free Screw Air Compressor

KAW-A / KAW-PMD Series

Oil-Free Compressor

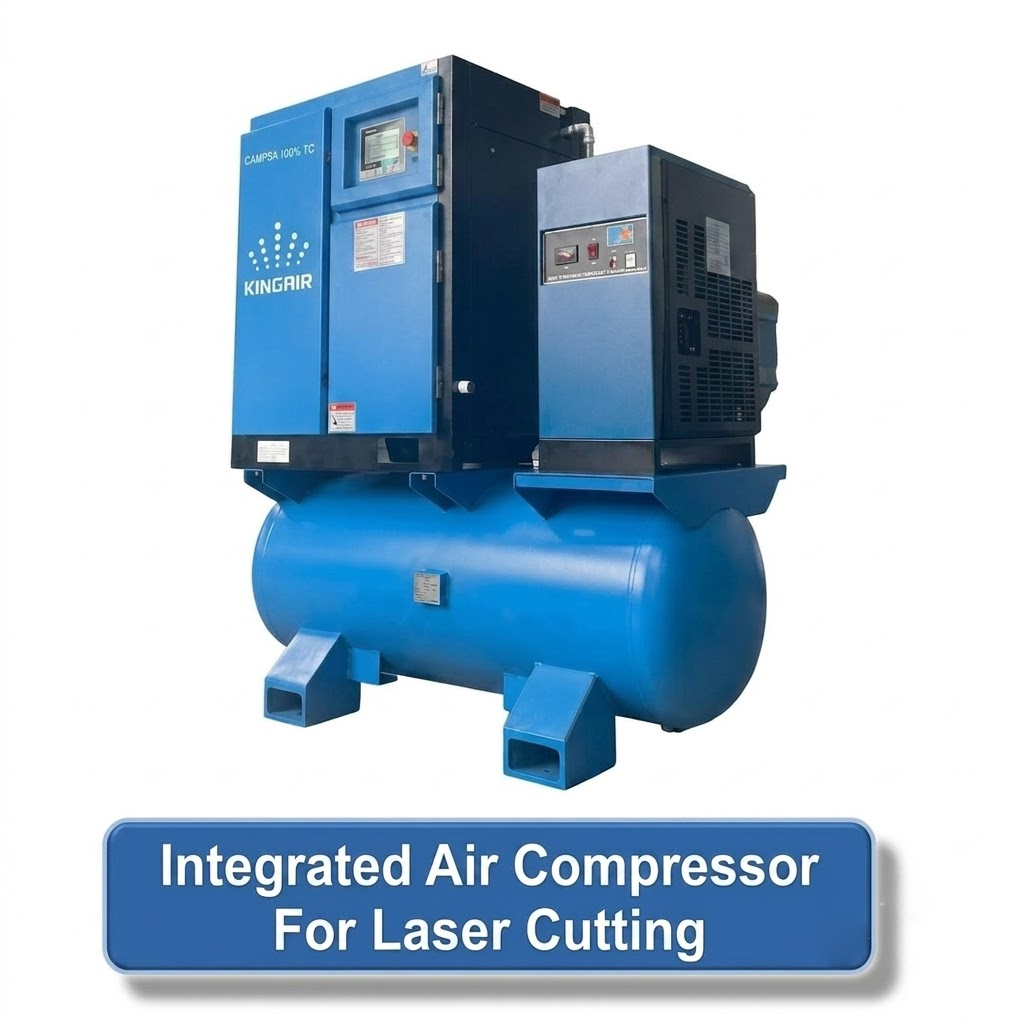

Integrated compressor for laser cutting systems

KAMP Series Integrated Laser Cutting Series

Oil Injected Air Compressor

Fixed speed screw air compressor

KA-D Series - Power Frequency Series

.

Screw Vacuum Pump Series

KAV-APM Series

.

⚙️

Oil Injected Screw Air Compressor

High-efficiency oil-injected screw technology for industrial applications. Engineered for reliable continuous operation, laser cutting, and heavy-duty industrial usage.

Category 01

Product Overview — Oil Injected Screw Air Compressor

Kingair’s oil-injected screw air compressors are designed for continuous heavy-duty industrial environments. With permanent magnet variable frequency drive (VFD) technology, dual-stage compression, and intelligent LCD digital control, these compressors deliver maximum energy savings (up to 45%) compared to conventional fixed-speed models. Suitable for automotive manufacturing, steel mills, textile industries, laser cutting, and general factory automation.

IP54 protection class motor with Class F insulation
Automatic load/unload control with soft-start function
Integrated air-water separator with oil content <3 ppm
ISO 9001 certified manufacturing process
Available with tank, line filters, and dryer packages

Product Series & Model Parameters

Series / Model

Power (kW)

Pressure (bar)

Air Delivery (m³/min)

Noise (dB)

Dimensions (mm)

Weight (kg)

KAPM KAPM-7.5A

7.5 7 / 8 / 10 / 13

0.8–1.2

≤64

900×650×980

260 KAPM KAPM-11A

11 7 / 8 / 10 / 13

1.1–1.65

≤65

1000×700×1100

320 KAPM KAPM-15A

15 7 / 8 / 10 / 13

1.6–2.5

≤65

1050×750×1150

380 KAPM KAPM-22A

22 7 / 8 / 10 / 13

2.4–3.8

≤68

1200×850×1200

490 KAPM KAPM-30A

30 7 / 8 / 10 / 13

3.5–5.2

≤68

1350×950×1350

620 KAPM KAPM-37A

37 7 / 8 / 10 / 13

4.2–6.5

≤70

1400×1000×1400

720 KAPM KAPM-45A

45 7 / 8 / 10 / 13

5.0–7.8

≤70

1500×1050×1450

820 KAT KAT-55A

55 7 / 10 / 13 / 16

7.5–10.0

≤72

1700×1100×1550

1050

KAT KAT-75A

75 7 / 10 / 13 / 16

10.5–13.5

≤73

1850×1200×1650

1250

KAL KAL-90A

90 3 / 4 / 5

15.0–20.0

≤74

2000×1250×1700

1480

KAL KAL-110A

110 3 / 4 / 5

18.0–24.0

≤75

2150×1350×1800

1650

Laser KA-Laser-15

15 16 / 20 / 25

1.2–2.0

≤65

1100×760×1200

420 Laser KA-Laser-22

22 16 / 20 / 25

1.8–3.0

≤68

1250×860×1280

530 💧

Oil Free Screw Air Compressor

100% oil-free compressed air for food & beverage, pharmaceutical, electronics, and medical applications. Certifications: ISO 8573-1 Class 0 oil-free.

Category 02

Product Overview — Oil Free Screw Air Compressor

Kingair’s oil-free compressor series delivers ISO 8573-1 Class 0 certified compressed air guaranteed zero oil contamination. The KAW-PMD water-lubricated models use purified water as the cooling and sealing medium, eliminating any possibility of oil contamination in the air stream. Suitable for food processing, semiconductor manufacturing, pharmaceutical production, and medical gas supply systems.

ISO 8573-1 Class 0 oil-free certified
Water lubrication with food-grade compatibility
Permanent Magnet (PM) motor with IE4 efficiency
Integrated pre-filter, post-filter, and refrigerated dryer
Scroll configuration available for low-capacity medical use

Product Series & Model Parameters

Series / Model

Power (kW)

Pressure (bar)

Air Delivery (m³/min)

Noise (dB)

Oil Content

Weight (kg)

KAW-PMD KAW-PMD-11

7.5 7 / 8 / 10

1.1–1.6

≤63

0 ppm (Class 0)

ISO 8573-1

KAW-PMD KAW-PMD-15

15 7 / 8 / 10

1.5–2.2

≤64

1000×700×1100

320 KAW-PMD KAW-PMD-22

22 7 / 8 / 10

2.3–3.5

≤66

1050×750×1150

380 380 KAW-PMD KAW-PMD-37

37 7 / 8 / 10

4.0–6.0

≤68

1200×850×1200

490 KAW-PMD KAW-PMD-55

55 7 / 8 / 10

6.0–9.0

≤70

1350×950×1350

620 KAWC KAWC-5.5

5.5 7 / 8 / 10

0.4–0.7

≤58

1400×1000×1400

720 KAWC KAWC-7.5

7.5 7 / 8 / 10

5.0– 0.6–1.0

≤60

1500×1050×1450

820 Dry KA KA-OF-30

30 6 / 8 / 10

7.5–10.0

≤70

1700×1100×1550

1050

Dry KA KA-OF-55

55 6 / 8 / 10

6.5–9.5

≤72

1850×1200×1650

1250

MagLev KAC-ML-75

75 0.5 / 0.7 / 1.0

55–110 m³/h

≤75

2000×1250×1700

1480

🔩

Screw Vacuum Pump

Dry-running screw vacuum pumps for industrial vacuum generation. No contamination of process gas ideal for chemical, pharmaceutical, and semiconductor manufacturing.

Category 03

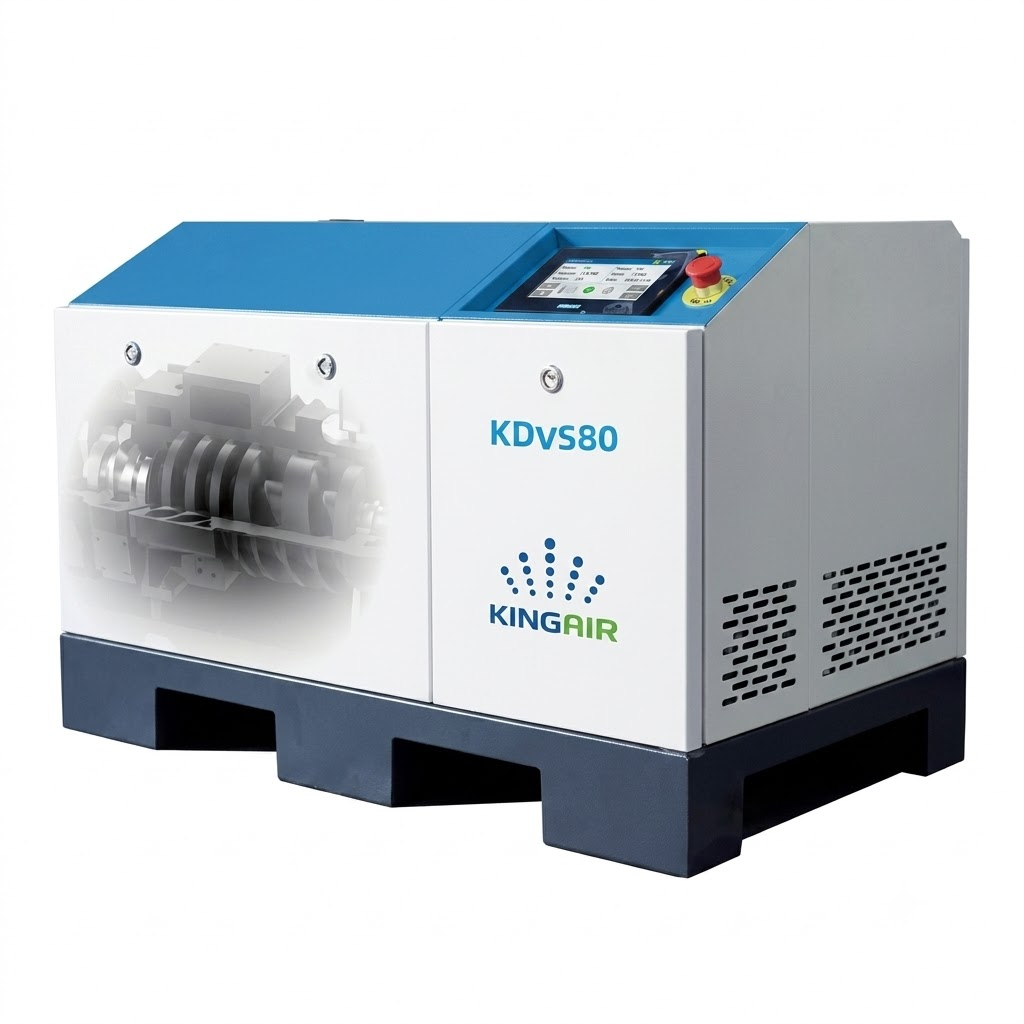

KDvS80

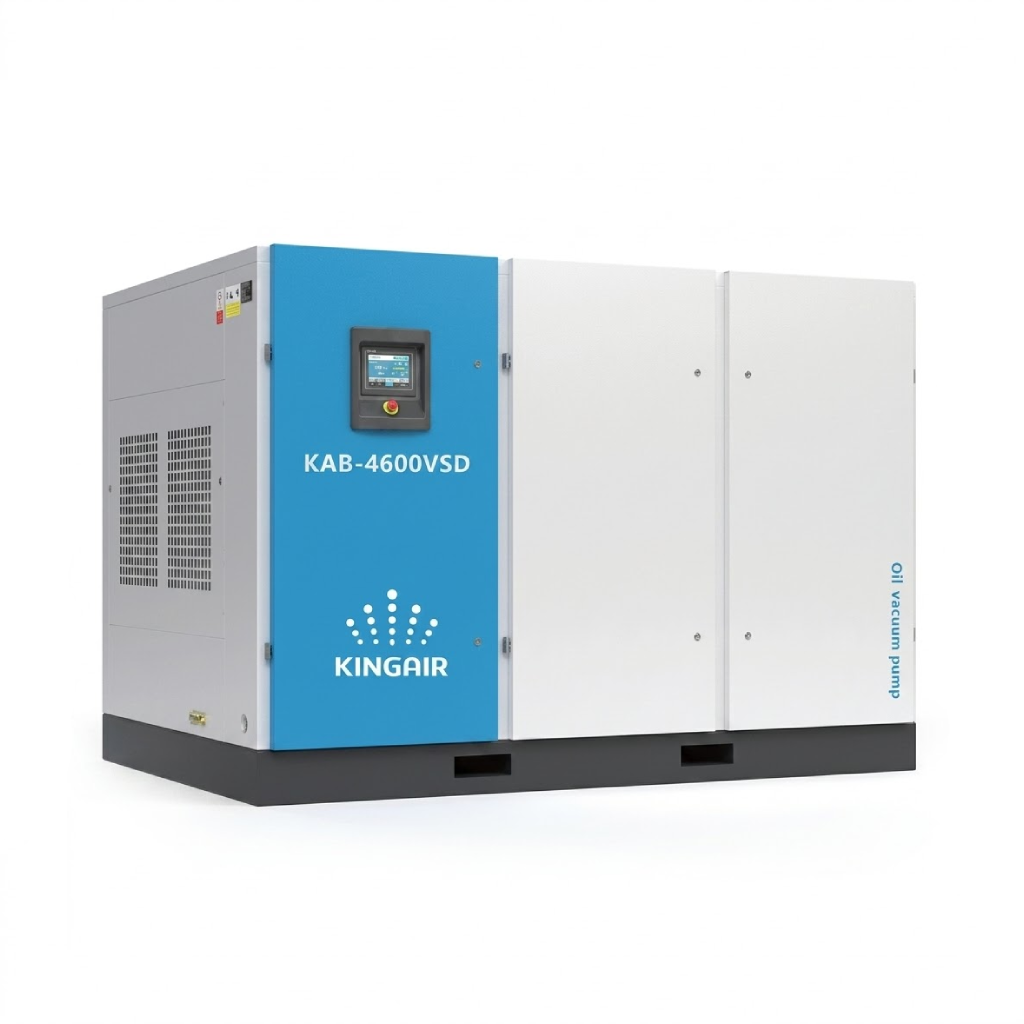

KAB-4600VSD

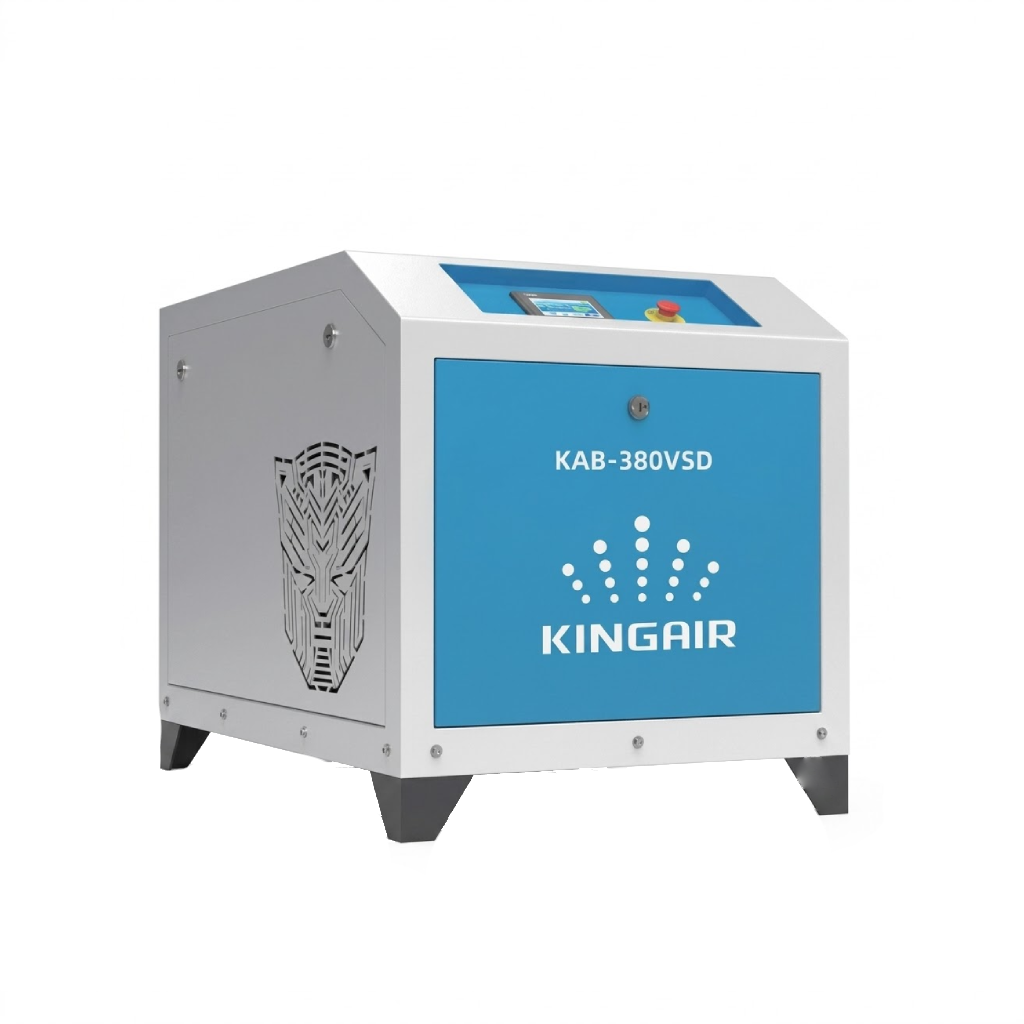

KAB-380VSD

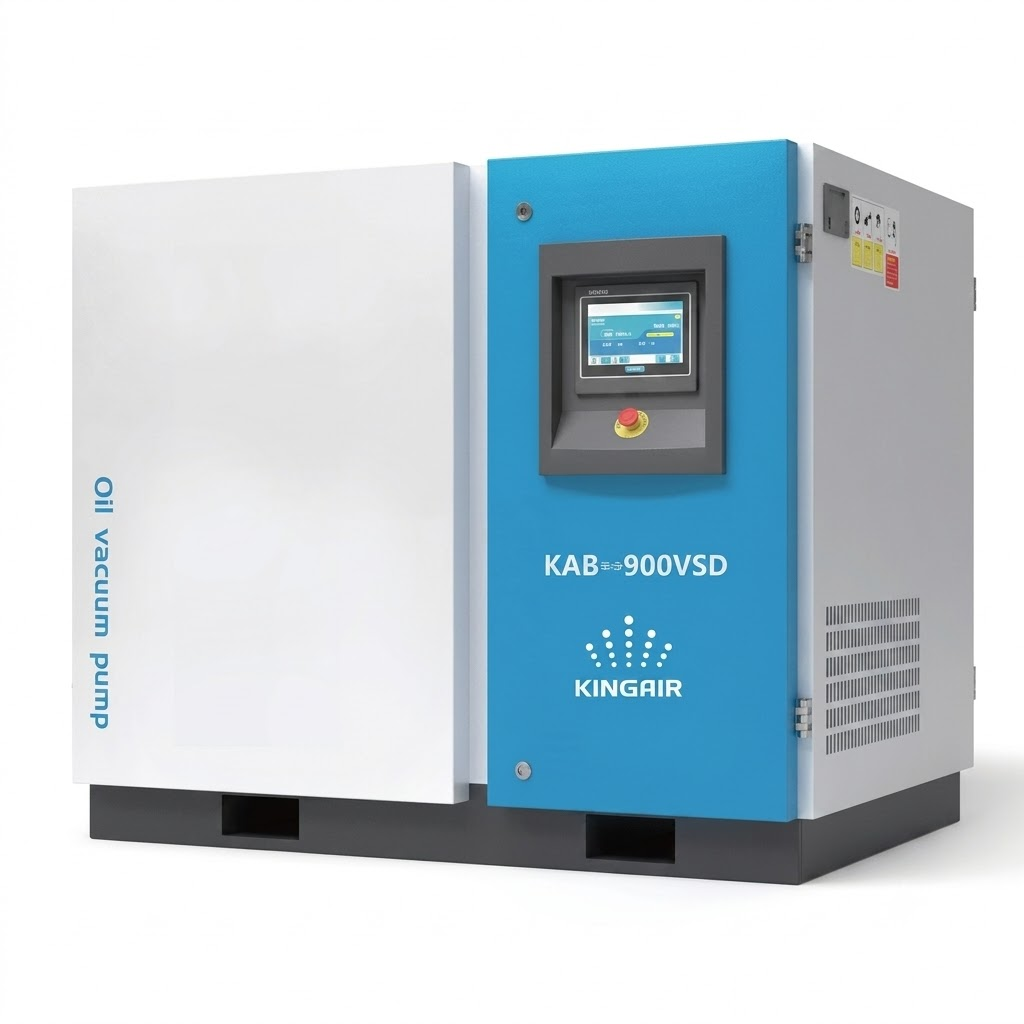

KAB-900VSD

Product Overview — Screw Vacuum Pump

Kingair dry screw vacuum pumps operate without any process fluid in the compression chamber, making them ideal for clean, dry vacuum applications. The twin-screw rotor mechanism provides pulsation-free vacuum with ultimate pressures as low as 0.5 mbar(a). The KVS series is suited to chemical vapor recovery, food packaging, semiconductor process chambers, and general industrial vacuum systems.Kingair dry screw vacuum pumps operate without any process fluid in the compression chamber, making them ideal for clean, dry vacuum applications. The twin-screw rotor mechanism provides pulsation-free vacuum with ultimate pressures as low as 0.5 mbar(a). The KVS series is suited to chemical vapor recovery, food packaging, semiconductor process chambers, and general industrial vacuum systems.

Ultimate pressure: 0.5 mbar(a) absolute
Dry-running no oil or water in compression chamber
VFD variable speed option for energy savings up to 40%
Corrosion-resistant coating for chemical gas handling
Integrated temperature control and overload protection

Product Series & Model Parameters

Series / Model

Power (kW)

Ultimate Pressure (mbar)

Pumping Speed (m³/h)

Noise (dB)

Inlet Size (mm)

Weight (kg)

KVS KVS-100

4 ≤0.5

100 ≤65

DN50

180 KVS KVS-200

7.5 ≤0.5

200 ≤67

DN80

260 KVS KVS-300

11 ≤0.5

300 ≤68

DN100

360 KVS KVS-500

15 ≤0.5

500 ≤70

DN100

450 KVSV KVSV-300

11 ≤1.0

300 ≤68

DN100

380 KVSV KVSV-500

15 ≤1.0

500 ≤70

DN125

480 KVR KVR-120

5.5 ≤33

120 ≤67

DN65

220 KVR KVR-250

11 ≤33

250 ≤70

DN100

350 KVC KVC-200

7.5 ≤5

200 ≤65

DN80

240 KVC KVC-400

15 ≤5

400 ≤68

DN100

420 🚛

Drilling Rigs & Portable Screw Compressors

Heavy-duty portable screw compressors and drilling air units designed for construction sites, mining operations, oil & gas fields, and surface drilling applications.

Category 04

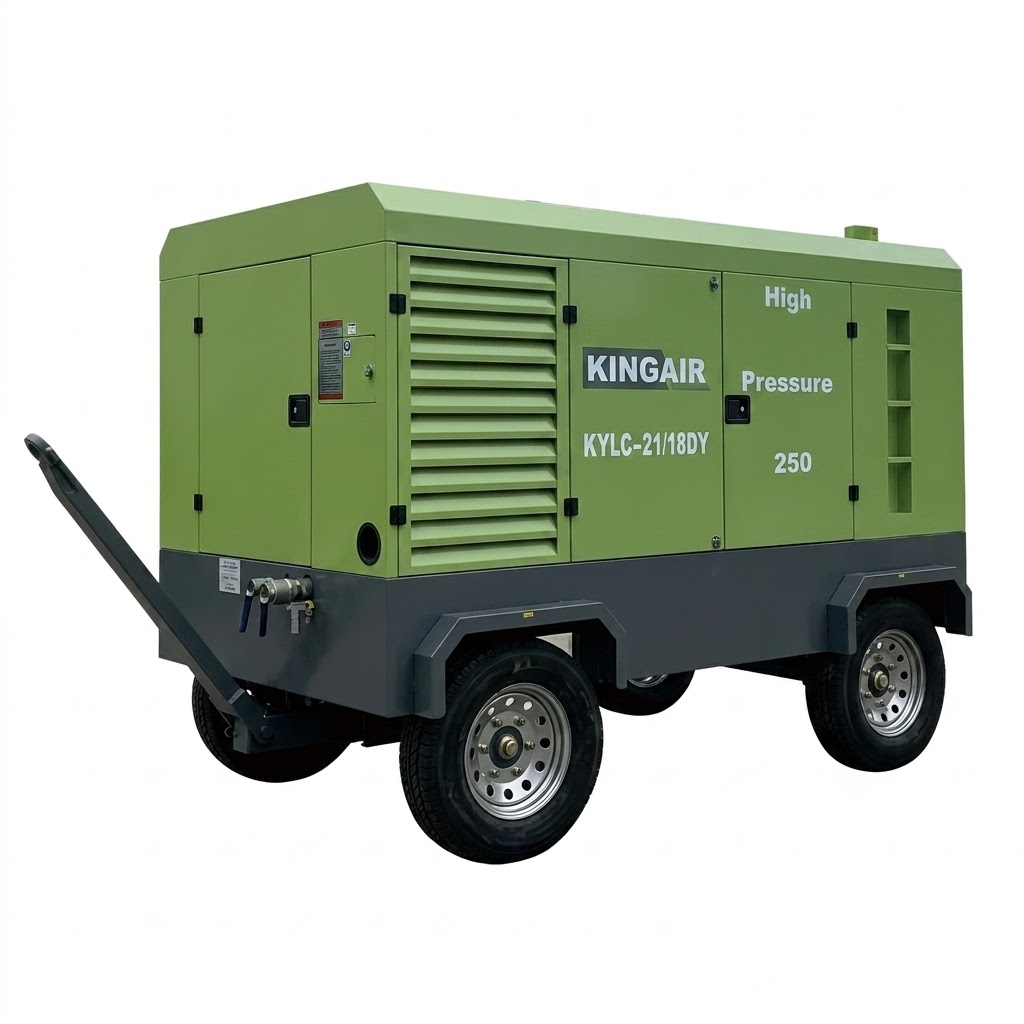

KYLC-2118DY

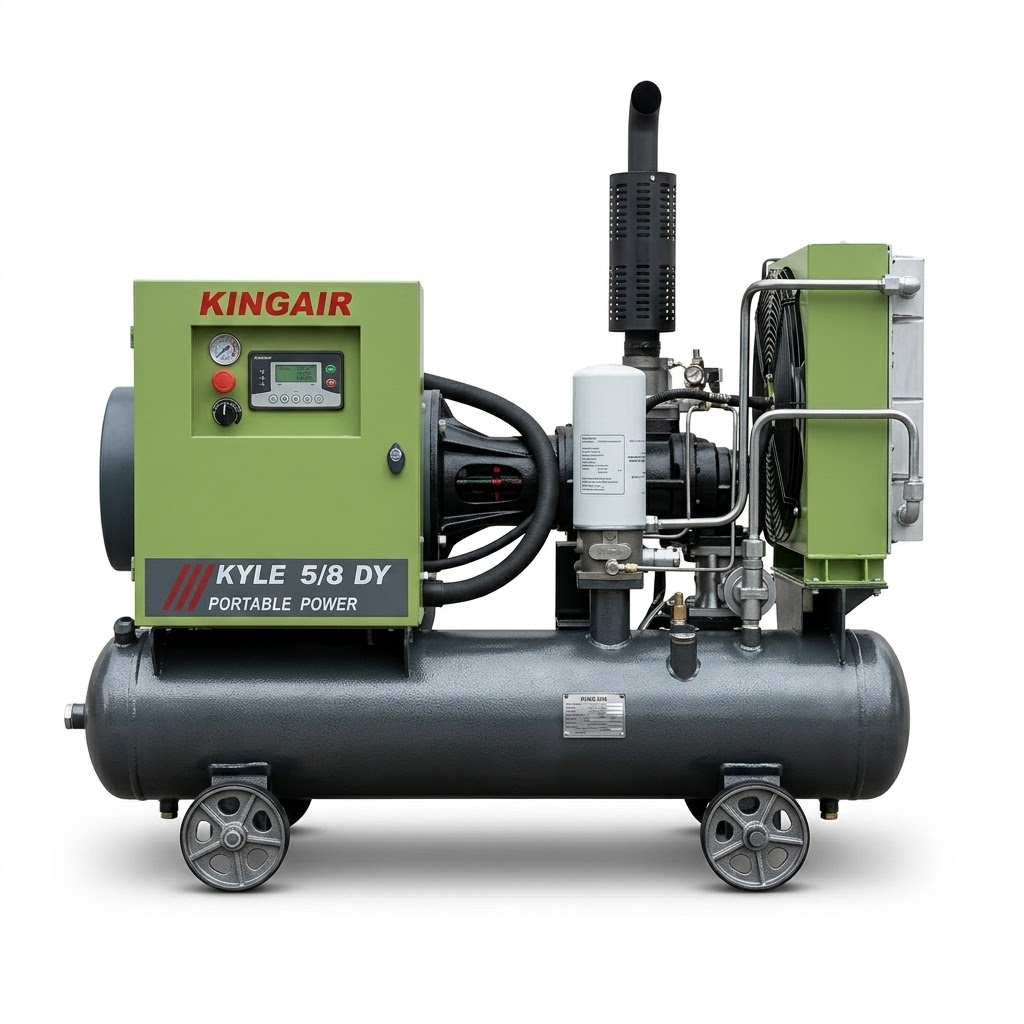

KYLE5/8DY

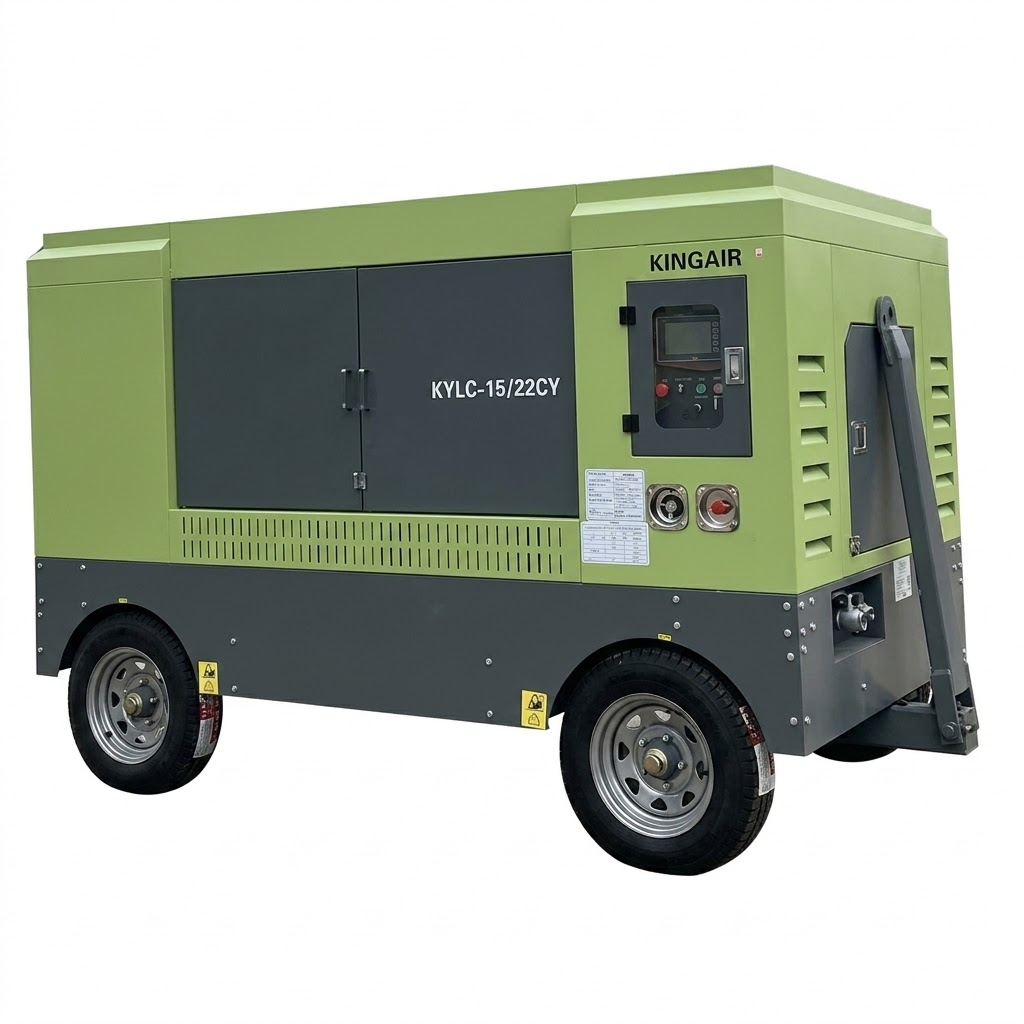

KYLC-15/22CY

KYLC-1905C

Product Overview — Drilling Rigs & Portable Screw Compressors

Kingair portable screw compressors and drilling rigs are engineered for the harshest field environments. Diesel-powered portable units are trailer-mounted for rapid site deployment, while the high-pressure variants supply air for DTH (Down-the-Hole) hammer drilling in mining, water-well drilling, and geotechnical investigations. Built to operate in temperatures from −25°C to +55°C with military-grade dust filtration systems.Kingair portable screw compressors and drilling rigs are engineered for the harshest field environments. Diesel-powered portable units are trailer-mounted for rapid site deployment, while the high-pressure variants supply air for DTH (Down-the-Hole) hammer drilling in mining, water-well drilling, and geotechnical investigations. Built to operate in temperatures from −25°C to +55°C with military-grade dust filtration systems.

Diesel engine options: Cummins, Deutz, Yuchai
Pressure range: 7 bar to 35 bar for high-pressure drilling
Flow rate: 3 m³/min to 50 m³/min depending on model
All-terrain towable skid or trailer configurations
CE certified; available for ATEX zone applications on request
